Angle Brackets and Framing Anchors

A full range of sizes general purpose brackets - galvanised steel, stainless steel - are available to suit all applications. They are used when one member crosses another or one member is trimmed into another. Made from galvanised steel EN 10346 DX51D Z275. Grade 1.4301 austenitic stainless steel to EN 10088-2.

Framing anchors are used for stronger nailed joints and economical secondary connections in timber framing that is an effective, versatile and economical method of providing strong, mechanical joints.

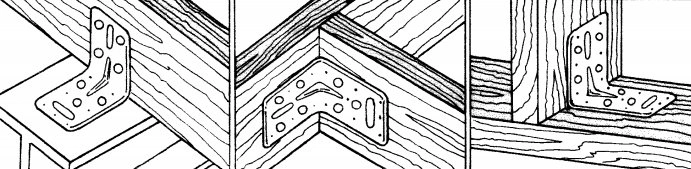

Angle bracket is a general purpose connector where members cross each other at right angles. Common applications include purlins to rafters, bracing etc. They are used to provide transverse restraint to trusses over non-load bearing internal walls without restricting vertical movement. Angle brackets should be used to fasten perpendicular intersections to prevent lateral movement between members and help provide rigidity to joints. They can also be used in shelf support details on top chord bracing to connect the blocking piece to the trusses.


Types of Brackets

  • Heavy duty brackets with strengthening ribs on bend to give added rigidity,
  • Brackets ideal for connecting hand rails available in galvanised and stainless steel for outdoor use.



Angle brackets can also be used for connecting:
  • Connecting rafters to plates
  • Connecting trusses to plates
  • Connecting purlins to trusses
  • Joist trimming
  • Connecting bracing to studding
  • Connecting purlins and joists to laminated beams
When making home repairs and renovations, angle brackets are essential. They can be used to put up shelves at home; an angle bracket can help the shelves carry heavier loads. A heavy angle bracket, on the other hand, is used as a construction bracket.

Truss Clips and Framing Anchors

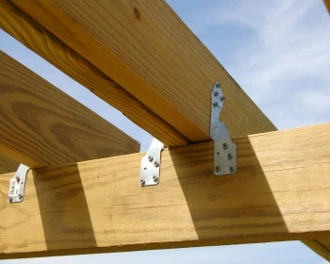

Trusses and rafters can be secured to the wall plate by skew nailing, but there is a danger of skew nails disturbing the joint, or being deflected by other connectors, which would result in an ineffective joint. Skew nailing through the connector plate at the heel usually results in splitting of the timber in the bottom chord, weakening one of the most heavily loaded joints. Its much safer and effective to use framing anchors or truss clips. It is strongly recommended that the truss clips are used, whether or not it is specified on the drawing. All metalwork, truss clips, framing anchors including nails should be galvanised to prevent corrosion.

Truss clips hold truss or rafter to the wall plate, while framing anchors connect purlins to trusses, various trimmed openings and elements in the ceiling joist structure and to studding.

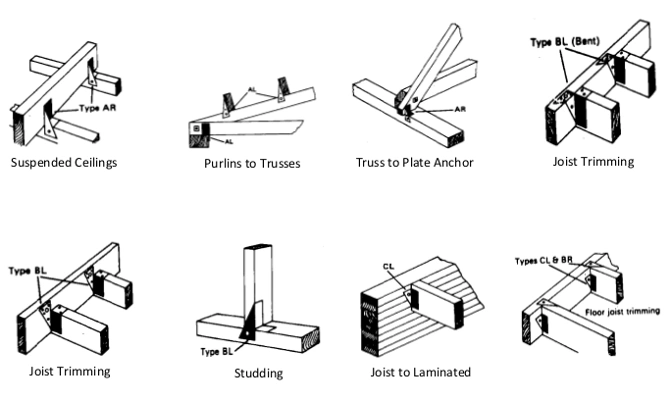

Framing Anchor Installation

There is also an Universal Anchor that can be bent on site to suit all applications, Specially bent anchor that has a large hole to permit the fixing of covering surface materials.




Show:
Sort By: Limit:

150x150mm Angle Bracket - 62mm width

150x150mm Angle Bracket - 62mm width

AB150/150  Delivery Time: 1 - 2 days

£1.39 (£1.67 inc VAT)

150x150mm Heavy duty angle bracket is a versatile, general purpose 90-degree bracket used to strengthen timer joists, roof trusses etc.    SpecificationPre Galvanised Mild Steel SD280GD+Z275Fixing InstructionsThe TECO Angle Bracket is the ultimate angle cleat using either Bolts, Coach..

£1.39 (£1.67 inc VAT)

150x90mm Angle Bracket - 62mm width

150x90mm Angle Bracket - 62mm width

AB150/90  Delivery Time: 1 - 2 days

£1.05 (£1.26 inc VAT)

150x90mm Heavy duty angle bracket is a versatile, general purpose 90-degree bracket used to strengthen timer joists, roof trusses etc.    SpecificationPre Galvanised Mild Steel SD280GD+Z275Fixing InstructionsThe TECO Angle Bracket is the ultimate angle cleat using either Bolts, C..

£1.05 (£1.26 inc VAT)

50x50mm Angle Bracket - 28mm width, 2.4mm thick

50x50mm Angle Bracket - 28mm width, 2.4mm thick

ABLD  Delivery Time: 1 - 2 days

£0.38 (£0.46 inc VAT)

50x50mm Heavy duty angle bracket is a versatile, general purpose 90-degree bracket used to strengthen timer joists, roof trusses etc.    SpecificationPre Galvanised Mild Steel SD280GD+Z275Fixing InstructionsThe TECO Angle Bracket is the ultimate angle cleat using either Bolts, Co..

£0.38 (£0.46 inc VAT)

50x50mm Angle Bracket - 62mm width

50x50mm Angle Bracket - 62mm width

AB50  Delivery Time: 1 - 2 days

£0.63 (£0.76 inc VAT)

50x15mm Heavy duty angle bracket is a versatile, general purpose 90-degree bracket used to strengthen timer joists, roof trusses etc.    SpecificationPre Galvanised Mild Steel SD280GD+Z275Fixing InstructionsThe TECO Angle Bracket is the ultimate angle cleat using either Bolts, Co..

£0.63 (£0.76 inc VAT)

60x40mm Angle Bracket - 62mm width

60x40mm Angle Bracket - 62mm width

AB60  Delivery Time: 1 - 2 days

£0.63 (£0.76 inc VAT)

60x40mm Heavy duty angle bracket is a versatile, general purpose 90-degree bracket used to strengthen timer joists, roof trusses etc.    SpecificationPre Galvanised Mild Steel SD280GD+Z275Fixing InstructionsThe TECO Angle Bracket is the ultimate angle cleat using either Bolts, Co..

£0.63 (£0.76 inc VAT)

90x90mm Angle Bracket - 62mm width

90x90mm Angle Bracket - 62mm width

AB90  Delivery Time: 1 - 2 days

£0.84 (£1.01 inc VAT)

90x90mm Heavy duty angle bracket is a versatile, general purpose 90-degree bracket used to strengthen timer joists, roof trusses etc.    SpecificationPre Galvanised Mild Steel SD280GD+Z275Fixing InstructionsThe TECO Angle Bracket is the ultimate angle cleat using either Bolts, Co..

£0.84 (£1.01 inc VAT)

Du-al-Clip Left Hand - DL

Du-al-Clip Left Hand - DL

DL  Delivery Time: 1 - 2 days

£0.44 (£0.53 inc VAT)

Left Hand Du-al-Clip is an all purpose framing anchor with dual-grip action for rigidity in lighter timber structures, where lighter loads and shorter spans permit. It provides nailing on two surfaces for jointing two timber members, where one member crosses or is trimmed to another - framework to t..

£0.44 (£0.53 inc VAT)

Du-al-Clip Right Hand - DR

Du-al-Clip Right Hand - DR

DR  Delivery Time: 1 - 2 days

£0.44 (£0.53 inc VAT)

Right Hand Du-al-Clip is an all purpose framing anchor with dual-grip action for rigidity in lighter timber structures, where lighter loads and shorter spans permit. It provides nailing on two surfaces for jointing two timber members, where one member crosses or is trimmed to another - framewor..

£0.44 (£0.53 inc VAT)

Trip-L-Grip Framing Anchor - Type AL

Trip-L-Grip Framing Anchor - Type AL

TAL  Delivery Time: 1 - 2 days

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor type AL is an universal anchor that can be used for stronger nailed joints and economical secondary connections in timber framing. Framing Anchors are an effective, versatile and economical method of providing strong, mechanical joints. Suitable for timber of minimum 44 x ..

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor - Type AR

Trip-L-Grip Framing Anchor - Type AR

TAR  Delivery Time: 1 - 2 days

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor type AR is an universal anchor that can be used for stronger nailed joints and economical secondary connections in timber framing. Framing Anchors are an effective, versatile and economical method of providing strong, mechanical joints. Suitable for timber of minimum ..

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor - Type BL

Trip-L-Grip Framing Anchor - Type BL

TBL  Delivery Time: 1 - 2 days

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor type BL is an universal anchor that can be used for stronger nailed joints and economical secondary connections in timber framing. Framing Anchors are an effective, versatile and economical method of providing strong, mechanical joints. Suitable for timber of minimum ..

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor - Type BR

Trip-L-Grip Framing Anchor - Type BR

TBR  Delivery Time: 1 - 2 days

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor type BR is an universal anchor that can be used for stronger nailed joints and economical secondary connections in timber framing. Framing Anchors are an effective, versatile and economical method of providing strong, mechanical joints. Suitable for timber of minimum ..

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor - Type CL

Trip-L-Grip Framing Anchor - Type CL

TCL  Delivery Time: 1 - 2 days

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor type BL is an universal anchor that can be used for stronger nailed joints and economical secondary connections in timber framing. Framing Anchors are an effective, versatile and economical method of providing strong, mechanical joints. Suitable for timber of minimum ..

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor - Type CR

Trip-L-Grip Framing Anchor - Type CR

TCR  Delivery Time: 1 - 2 days

£0.31 (£0.37 inc VAT)

Trip-L-Grip Framing Anchor type CR is an universal anchor that can be used for stronger nailed joints and economical secondary connections in timber framing. Framing Anchors are an effective, versatile and economical method of providing strong, mechanical joints. Suitable for timber of minimum ..

£0.31 (£0.37 inc VAT)

Trip-L-Grip Universal Framing Anchor

Trip-L-Grip Universal Framing Anchor

TUNI  Delivery Time: 1 - 2 days

£0.31 (£0.37 inc VAT)

Trip-L-Grip Universal Framing Anchor is an universal anchor that can be bent on site to suit all applications. Used for stronger nailed joints and economical secondary connections in timber framing. Framing Anchors are an effective, versatile and economical method of providing strong, mechanical joi..

£0.31 (£0.37 inc VAT)

Showing 1 to 15 of 15 (1 Pages)
