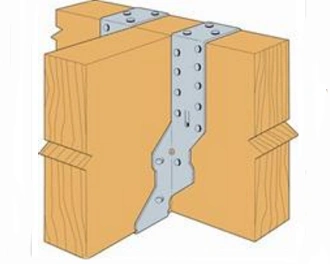

Timber to Timber Joist Hangers

Timber to timber joist hangers are used, where you need to strengthen a load bearing timber structure connection. These joist hangers use face mount attachments to fasten joists to ledger boards and beams. You can buy joist hangers for different size lumber and for various applications.

Its extremely important that you select and properly install the appropriate joist hangers. Make sure to fill all of the required nail holes with the appropriate nail type. Always make sure you are using the largest hanger size for a particular joist. Joist hangers are designed for specific applications and load carrying capacities. Never cut, resize or modify joist hangers for alternative uses, since this will greatly affect their load capacity.


Mini Joist Hanger

This one piece galvanised mini joist hanger is available in a range of widths for light duty applications such as trimmers and ceiling joists. There is a tag on the base of the hanger helps avoid rotation and aids fast, accurate positioning. This tag can easily be bent. The joist bearing is 50mm. The hanger is produced from 1mm thick pre-galvanised mild steel.



Fixing Instructions

  • All holes should be nailed using 30mm x 3.75mm Square Twist nails or equivalent.

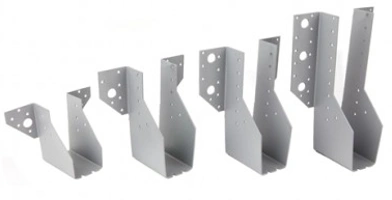

Multifunctional Joist Hanger

The multifunctional joist hanger is used where additional strength is required or where access to the top of the timber or steel is not available. These joist hangers can be nailed or bolted. The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation. These joist hangers available from mini to large sizes.

Specifications

  • Location tabs aid fast accurate alignment of the hanger.
  • Joist bearing 85mm,
  • Have M12 bolt holes,
  • Also available in Stainless Steel.

Fixing Instructions

  • 30mm x 3.75mm Square Twisted nails are used for nailing the holes during installation.
  • The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.

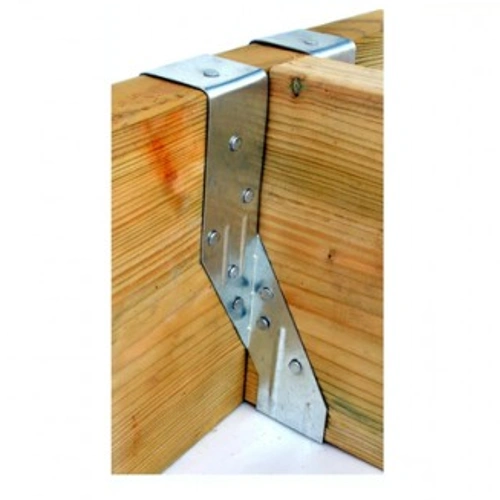

No Tag Joist Hanger

No Tag Joist Hanger is a wide legs timber hangers, available in seven different sizes and suitable for depths ranging from 125mm to 225mm. The hanger is produced from 0.8mm thick pre-galvanised mild steel in accordance with the BS EN 10327:2004 DX51D+Z275 specifications. Also available in Stainless Steel. Joist bearing 60mm. Also available in stainless steel.



Fixing Instructions

  • 30mm x 3.75mm Square Twisted nails should be used for nailing the holes during installation.
  • For stainless steel products use 30mm x 3.75mm stainless steel annular ring shank nails.
  • Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.

Short Leg Joist Hanger

This Joist Hanger has a shortened leg and available in four different sizes with a 50mm joist bearing. The hanger includes a base tag to avoid unnecessary rotation.  The base tag can significantly contribute to faster and more accurate installation. It is produced from 1mm thick pre-galvanised mild steel produced in accordance to  EN BS 10327:2004 DX51D+Z275.



Fixing Instructions

  • 30mm x 3.75mm Square Twisted nails should be used for nailing the holes during installation.
  • For stainless steel products use 30mm x 3.75mm stainless steel annular ring shank nails.
  • Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.
  • The tag can be bent if not required.

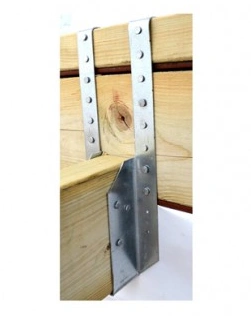

Long Leg Joist Hanger

The Long Leg Joist Hanger is available in twenty different sizes in 450mm and 600mm body depth, and 50mm joist bearing. It is especially designed for loft conversion projects. The hanger includes a base tag to avoid unnecessary rotation. It is produced from 1.5mm thick pre-galvanised mild steel produced in accordance to  EN BS 10327:2004 DX51D+Z275.



Fixing Instructions

  • 30mm x 3.75mm Square Twisted nails should be used for nailing the holes during installation.
  • For stainless steel products use 30mm x 3.75mm stainless steel annular ring shank nails.
  • Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.
  • The tag can be bent if not required.

Standard Joist Hanger

The Standard Joist Hanger is available in three different sizes and suitable for depths ranging from 125mm to 150mm and has50mm joist bearing. The hanger includes a base tag to avoid unnecessary rotation and easy positioning. The tag can be bent easily, if not needed. It is produced from 1mm thick pre-galvanised mild steel produced in accordance to  EN BS 10327:2004 DX51D+Z275. Also available in stainless steel.



Fixing Instructions

  • 30mm x 3.75mm Square Twisted nails should be used for nailing the holes during installation.
  • For stainless steel products use 30mm x 3.75mm stainless steel annular ring shank nails.
  • Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.
  • The tag can be bent if not required.

Heavy Duty Face Fix Joist Hanger

This Heavy Duty Joist Hanger is designed for timber to timber, timber to concrete or masonry fixings. It is produced from 2.5mm thick pre-galvanised mild steel and in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. The joist hanger offers substantial safe working load up to 18.5kN. Available also in stainless steel.


Specifications

  • Nominal depth 150mm,
  • Joist bearing 95mm,
  • M10 & M12 bolt holes for added versatility,
  • Available in standard or with concealed flanges,
  • Available also in stainless steel.
Fixing Instructions

  • The hanger should exceed the half of the supported member depth in order of avoiding rotation.
  • Can be fully nailed, coach screwed and bolted.
  • Use 3nos. M10 x 75mm Coach Screws on either side and the supported joist bolted through the hanger using an M12 Bolt,
  • The safe working load also depends on the block strength and used fixings.

I-Joist Hanger

I-Joist Hanger is an innovative new backer free Joist Hanger to suit solid engineered wood products as well as I-Joists, and is engineered to combine maximum load carrying capacity with easy hands-free site installation, at minimum cost. They are offered with either face fix or top fix connections. Made from 0.7mm pre galvanised mild steel EN 10346 DX51D Z275.



Specifications

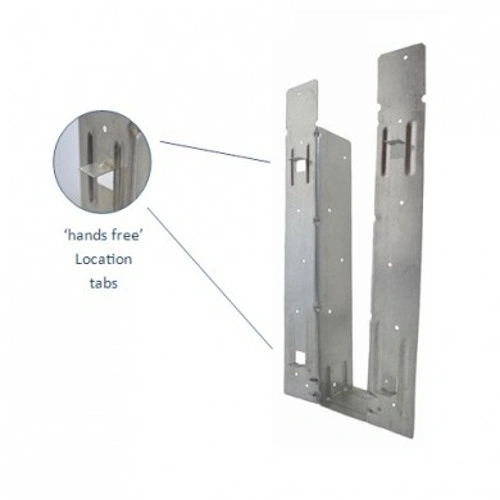

  • Unique hands free installation,
  • Qualified for use with various nail types,
  • Requires less nails,
  • Face fix or top fix design,
  • Enhanced load carrying option,
  • Can be used on solid Engineered Wood Products or I-Joists.
Fixing Instructions

  • All standard round holes should be filled with either 2.65x40mm or 2.8x40mm or 3.4x35mm ring-shank nails or 3.75x30mm square twist nails.
  • Fill Diamond shaped holes for enhanced installation to I-Joist with backer blocks or solid LVL or Glulam headers.



Choose subcategory or scroll down to see products

Show:
Sort By: Limit:

38x72mm Mini Mini Joist Hanger

38x72mm Mini Mini Joist Hanger

MMINI - 38x72  Delivery Time: 1 - 2 days

£0.41 (£0.49 inc VAT)

38x72mm Mini Mini Joist Hanger is a timber to timber joist hanger suitable for light duty applications such as trimmers, ceiling joists and decking. The hanger is produced from 1mm thick pre-galvanised mild steel. The tag on the base of the hanger helps avoid rotation and aids fast, accurate lo..

£0.41 (£0.49 inc VAT)

other sizes
38x100mm Woody Mini Joist Hanger

38x100mm Woody Mini Joist Hanger

MINI - 38x100  Delivery Time: 1 - 2 days

£0.46 (£0.55 inc VAT)

38x100mm Woody Mini Joist Hanger is produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. Also available in stainless steel. The hanger includes a base tag that can significantly contribute to faster and more accura..

£0.46 (£0.55 inc VAT)

other sizes
38x101mm Multifunctional Mini Joist Hanger

38x101mm Multifunctional Mini Joist Hanger

MFM - 38x101  Delivery Time: 1 - 2 days

£1.36 (£1.63 inc VAT)

38mm x 101mm Multifunctional Mini Joist Hanger is a Face Fix Joist Hanger, produced from 1.2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19..

£1.36 (£1.63 inc VAT)

other sizes
38x154mm Multifunctional Joist Hanger

38x154mm Multifunctional Joist Hanger

MFT38/346BA - 38x154  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

38mm x 154mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base locati..

£1.78 (£2.14 inc VAT)

other heights
44x151mm Multifunctional Joist Hanger

44x151mm Multifunctional Joist Hanger

MFT44/346BA - 44x151  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

44mm x 151mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..

£1.78 (£2.14 inc VAT)

other heights
47x150mm Multifunctional Joist Hanger

47x150mm Multifunctional Joist Hanger

MFT47/346BA - 47x150  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

47mm x 150mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..

£1.78 (£2.14 inc VAT)

other heights
50x148mm Multifunctional Joist Hanger

50x148mm Multifunctional Joist Hanger

MFT50/346BA - 50x148  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

50mm x 148mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..

£1.78 (£2.14 inc VAT)

other heights
63x142mm Multifunctional Joist Hanger

63x142mm Multifunctional Joist Hanger

MFT63/346BA - 63x142  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

63mm x 142mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..

£1.78 (£2.14 inc VAT)

other heights
76x135mm Multifunctional Joist Hanger

76x135mm Multifunctional Joist Hanger

MFT76/346BA - 76x135  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

76mm x 135mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It inclu..

£1.78 (£2.14 inc VAT)

other heights
90x128mm Multifunctional Joist Hanger

90x128mm Multifunctional Joist Hanger

MFT90/346BA - 90x128  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

90mm x 128mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It inclu..

£1.78 (£2.14 inc VAT)

other heights
100x123mm Multifunctional Joist Hanger

100x123mm Multifunctional Joist Hanger

MFT100/346BA - 100x123  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

100mm x 123mm Multifunctional Joist Hanger 100 x 123mm is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It in..

£1.78 (£2.14 inc VAT)

other heights
125x110mm Multifunctional Joist Hanger

125x110mm Multifunctional Joist Hanger

MFT125/346BA - 125x110  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

125mm x 110mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base ..

£1.78 (£2.14 inc VAT)

other heights
150x98mm Multifunctional Joist Hanger

150x98mm Multifunctional Joist Hanger

MFT150/346BA - 150x98  Delivery Time: 1 - 2 days

£1.78 (£2.14 inc VAT)

150mm x 98mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..

£1.78 (£2.14 inc VAT)

other heights
38x285mm Woody Standard Joist Hanger

38x285mm Woody Standard Joist Hanger

STD - 38x285  Delivery Time: 1 - 2 days

£0.63 (£0.76 inc VAT)

38x285mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..

£0.63 (£0.76 inc VAT)

44x282mm Woody Standard Joist Hanger

44x282mm Woody Standard Joist Hanger

STD - 44x282  Delivery Time: 1 - 2 days

£0.63 (£0.76 inc VAT)

44x282mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..

£0.63 (£0.76 inc VAT)

47x277mm Woody Standard Joist Hanger

47x277mm Woody Standard Joist Hanger

STD - 47x277  Delivery Time: 1 - 2 days

£0.63 (£0.76 inc VAT)

47x277mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..

£0.63 (£0.76 inc VAT)

63x300mm Woody Standard Joist Hanger

63x300mm Woody Standard Joist Hanger

STD - 63x300  Delivery Time: 1 - 2 days

£0.73 (£0.88 inc VAT)

63x300mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..

£0.73 (£0.88 inc VAT)

other widths
38x450mm Woody Long Leg Joist Hanger

38x450mm Woody Long Leg Joist Hanger

LL - 38x450  Delivery Time: 1 - 2 days

£2.54 (£3.05 inc VAT)

38x450mm Woody Long Leg Joist Hanger is produced from 1.5mm thick pre-galvanised mild steel produced in accordance to  EN 10346 DX51D+Z275 with 50mm joist bearing. This timber to timber joist hanger designed for use in Loft Conversions where the hanger extends below the support. ..

£2.54 (£3.05 inc VAT)

other widths
38x150mm Heavy Duty Face Fix Joist Hanger

38x150mm Heavy Duty Face Fix Joist Hanger

HWTNT38  Delivery Time: 2 - 3 days

£3.30 (£3.96 inc VAT)

38mm x 150mm Heavy Duty Face Fix Joist Hanger is especially designed for timber to timber, concrete or masonry fixings.  The hanger is produced from 2.5mm thick pre-galvanised mild steel and in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. SPECIFICATIONAl..

£3.30 (£3.96 inc VAT)

other widths
45x240mm Top Fix I-Joist Hanger

45x240mm Top Fix I-Joist Hanger

TIJ-TI - 45x240mm  Delivery Time: 1 - 2 days

£1.11 (£1.33 inc VAT)

45x240mm Top Fix I-Joist Hanger is an innovative new backer free Joist Hanger  to suit solid engineered wood products as well as I-Joists. It is engineered to combine maximum load carrying capacity with easy hands-free site installation, at minimum cost.        CHA..

£1.11 (£1.33 inc VAT)

other widths
50x240mm Top Fix I-Joist Hanger

50x240mm Top Fix I-Joist Hanger

TIJ-TI - 50x240mm  Delivery Time: 1 - 2 days

50x240mm Top Fix I-Joist Hanger is an innovative new backer free Joist Hanger  to suit solid engineered wood products as well as I-Joists. It is engineered to combine maximum load carrying capacity with easy hands-free site installation, at minimum cost.        CHA..

other widths
Showing 1 to 21 of 21 (1 Pages)
