Single Piece Joist Hangers

Single Piece Joist Hangers are designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. The straight top flange is mounted to the masonry wall, with at least 3 courses of masonry over it. This hanger can also be used with timber or steel beams by using appropriate fixings. You can also add an extra lock plate transforming the hanger into a hook over or a straddle.




Fixing Instructions

  • The back plate of the hanger should lie flat against the vertical masonry support.
  • Masonry flange should have a minimum of 3 courses above.
  • Both supporting and above masonry should be allowed to mature before any load is applied.
  • Joist should be square cut and sit tight to the back of the hanger - maximum gap permitted is 6mm.
  • Nail the side flanges with 30x3.75mm galvanised square twist nails or equivalent. Stainless steel hangers should be nailed using 30x3.75 annular ring shank nails.
  • To provide lateral restraint HD straps should be used.
  • Do not use galvanised fixings with stainless steel products or vice versa.



Show:
Sort By: Limit:

47x100mm Single Piece Masonry Hanger

47x100mm Single Piece Masonry Hanger

FHM47/100  Delivery Time: 1 - 3 days

£1.87 (£2.24 inc VAT)

47mm x 100mm Single Piece Joist Hanger are designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. They are also suitable for many timber to timber applications by fixing the masonry flange securely to the timber or to steel beams using ap..

£1.87 (£2.24 inc VAT)

other heights
50x100mm Single Piece Masonry Hanger

50x100mm Single Piece Masonry Hanger

FHM50/100  Delivery Time: 1 - 3 days

£1.87 (£2.24 inc VAT)

50mm x 100mm Single Piece Joist Hanger are designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. They are also suitable for many timber to timber applications by fixing the masonry flange securely to the timber or to steel beams using ap..

£1.87 (£2.24 inc VAT)

other heights

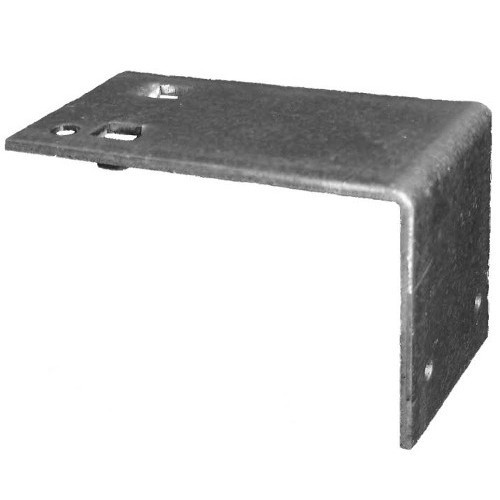

100mm Single Piece Masonry Hanger Lock Plate

100mm Single Piece Masonry Hanger Lock Plate

FHMR100  Delivery Time: 3 - 5 days

£0.77 (£0.92 inc VAT)

Single Piece Masonry Hanger Lock Plate is an additional element to use with the FHM Single Piece Joist Hanger and the WM Welded Masonry Joist Hanger. This plate is easily be transformed into a hook over joist hanger. No special tools or rivets are required. Just insert Lock Plate at 90, rotate ..

£0.77 (£0.92 inc VAT)

other widths
215mm Single Piece Masonry Hanger Lock Plate Straddle

215mm Single Piece Masonry Hanger Lock Plate Straddle

FHMST215  Delivery Time: 3 - 5 days

£1.17 (£1.40 inc VAT)

Single Piece Masonry Hanger Lock Plate is an additional element to use with the FHM Single Piece Joist Hanger and the WM Welded Masonry Joist Hanger. This plate is easily be transformed into a hook over joist hanger. No special tools or rivets are required. Just insert Lock ..

£1.17 (£1.40 inc VAT)

Showing 1 to 4 of 4 (1 Pages)
