I-Joist Hangers

I-Joist Hanger is an innovative backer free Joist Hanger to suit solid engineered wood products as well as I-Joists designed to provide support underneath the joist, rafter or beam to provide a stronger connection. It combines maximum load carrying capacity with easy hands-free site installation, at minimum cost.


Types of Timber to Timber I-Joist Hangers

  • Top fix I-joist hanger,
  • Face fix I-joist hanger

CHARACTERISTICS

  • Unique hands free installation,
  • Qualified for use with various nail types,
  • Requires less nails,
  • Face fix or Top fix design,
  • Enhanced load carrying ability,
  • Can be used on solid Engineered Wood products or I-Joists.

Note: These hangers shouldn't be modified, as a skew of up to 5 might bring down its holding strength by about 10%.

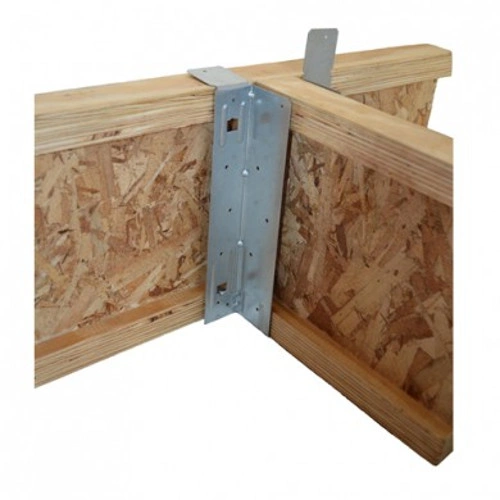

Top-fix I Joist Hanger



Face-fix Joist hanger

FIXING INSTRUCTIONS

  • All standard round holes should be filled with either 2.65 x 40mm or 2.8 x 40mm or 3.4 x 35mm ring-shank nails or 3.75 x 30mm square twist nails.
  • Fill diamond shaped holes for enhanced installation to I-Joist with backer blocks or solid LVL or Glulam headers.



Show:
Sort By: Limit:

45x240mm Top Fix I-Joist Hanger

45x240mm Top Fix I-Joist Hanger

TIJ-TI - 45x240mm  Delivery Time: 1 - 3 days

£1.76 (£2.11 inc VAT)

45x240mm Top Fix I-Joist Hanger is an innovative new backer free Joist Hanger  to suit solid engineered wood products as well as I-Joists. It is engineered to combine maximum load carrying capacity with easy hands-free site installation, at minimum cost. Long term safe working load = ..

£1.76 (£2.11 inc VAT)

other widths
50x240mm Top Fix I-Joist Hanger

50x240mm Top Fix I-Joist Hanger

TIJ-TI - 50x240mm  Delivery Time: 1 - 3 days

£1.76 (£2.11 inc VAT)

50x240mm Top Fix I-Joist Hanger is an innovative new backer free Joist Hanger  to suit solid engineered wood products as well as I-Joists. It is engineered to combine maximum load carrying capacity with easy hands-free site installation, at minimum cost. Long term safe working load = ..

£1.76 (£2.11 inc VAT)

other widths
Showing 1 to 2 of 2 (1 Pages)
