115mm Single Piece Masonry Hanger Lock Plate

115mm Single Piece Masonry Hanger Lock Plate
Price: £1.06 (£1.27 inc VAT)
  • Product Code: A1-5285
  • Delivery Time: 2 - 4 days
  • Brand: TECO
  • Model: FHMR115
  • Weight: 76.00g
Show other widths

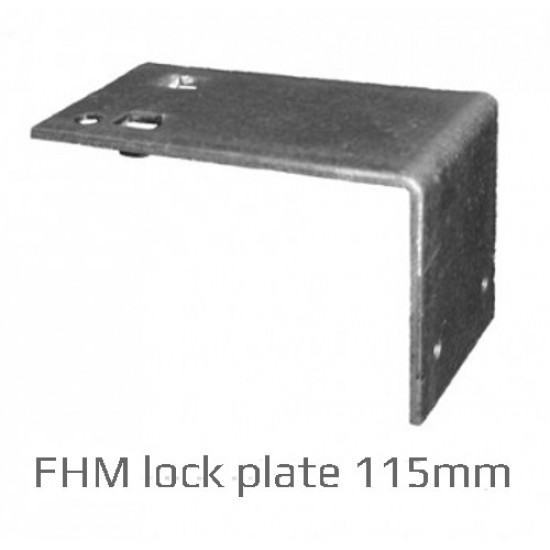

115mm Single Piece Masonry Hanger Lock Plate

Width: 115mm
Thickness: 2.5mm
Weight: 76g

Single Piece Masonry Hanger Lock Plate is an additional element to use with the FHM Single Piece Joist Hanger and the WM Welded Masonry Joist Hanger. This plate is easily be transformed into a hook over joist hanger. No special tools or rivets are required. Just insert Lock Plate at 90, rotate and tap into place

SPECIFICATION

The lock plate is produced from pre-galvanised steel, S280GD+Z275.

Note: Joist hanger is not included.

Brand: TECO Model: FHMR47X200R215
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£4.85
£5.82 inc VAT
Brand: TECO Model: DPC150
Delivery Time: In stock, 1-2 days
150mm Damp Proof Course - DPC provides damp proof protection, preventing ingress of external moisture. Suitable for brick, block, stone or concrete walls. Suitable for vertical and horizontal applications.  Specification500mu.Produced to BS 6515:84.Suitable for withstanding a compress..
£5.09
£6.11 inc VAT
Brand: TECO Model: TRS800B100
Delivery Time: In stock, 1-2 days
800mm bent 100mm Ron Sammons strap is a lightweight restraint strap that can be used instead of a traditional Heavy Duty Strap to provide lateral restraint of roof trusses, rafters and joists tied to masonry and for vertical applications such as holding down the wall plate. Designed to The..
£1.53
£1.84 inc VAT
Brand: TECO Model: TCSS 50mm M12
Delivery Time: In stock, 1-2 days
Diameter: 50mmTeeth Size: 0.9mm50mm M12 Single Sided Tooth Plate Timber Connector is designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are p..
£0.30
£0.36 inc VAT
Brand: TECO Model: TCDS 50mm M16
Delivery Time: In stock, 1-2 days
Diameter: 50mmTeeth Size: 0.9mm50mm M16 Double Sided Tooth Plate Timber Connector is designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are p..
£0.50
£0.60 inc VAT
Brand: TECO Model: WM100x225
Delivery Time: 2 - 4 days
100mm x 225mm Welded Masonry Joist Hanger is designed to support 225mm high timber joist. The joist hanger's actual height is 215mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to t..
£5.47
£6.56 inc VAT
