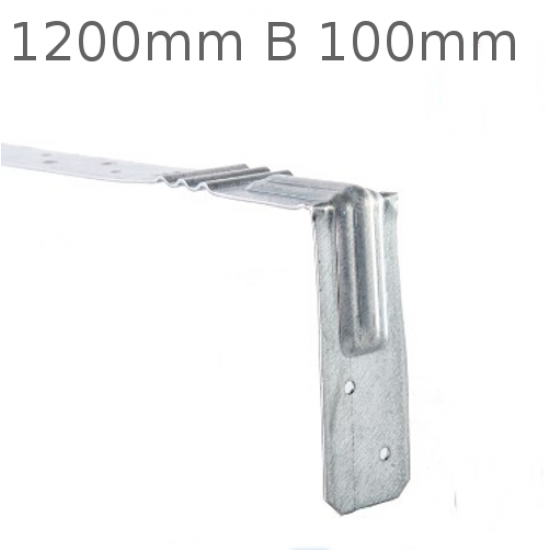

TRS Restraint Strap 1200mm Bent 100mm
TRS Restraint Strap 1200mm Bent 100mm
Price: £2.18 (£2.62 inc VAT)
- Product Code: A1-5803
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: TRS1200B100
- Weight: 444.00g
TRS Restraint Strap 1200mm Bent 100mm
Length: 1200mm
Width: 36mm
Thickness: 1.4mm
Weight: 444g
1200mm bent 100mm Ron Sammons strap is a lightweight restraint strap that can be used instead of a traditional Heavy Duty Strap to provide lateral restraint of roof trusses, rafters and joists tied to masonry and for vertical applications such as holding down the wall plate. Designed to The Building Regulations BS 5268 Part 3 and other building standards for lateral restraint.
CHARACTERISTICS
- 1.4mm thick x 36mm wide,
- Lightweight design makes it easier to handle,
- No need to notch joists making it easier and quicker to install,
- Easier to build into brickwork courses,
- More cost effective when compared to the traditional Heavy Duty Strap and Heavy Edge Rolled Strap,
- Galvanised steel EN 10346 G600,
- Manufactured to EN 845-1:2013,
- Manufactured to EN 845-1:2013.
APPLICATION
For horizontal applications, use min 6 no. 3.75 x 30mm square twist nails or equivalent fixed to timber joists/rafters.
Restraint-Straps.pdf
