Herringbone Joist Strut - 450mm centres

Herringbone Joist Strut - 450mm centres
Herringbone Joist Strut - 450mm centres
Price: £0.48 (£0.58 inc VAT)
  • Product Code: A1-5590
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: HB450
  • Weight: 119.00g
Show other lengths

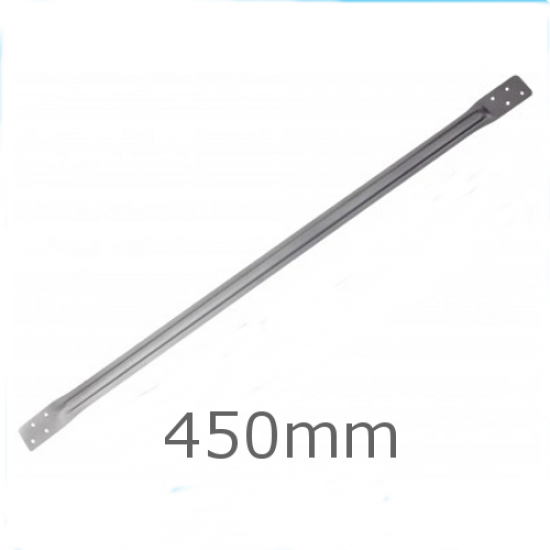

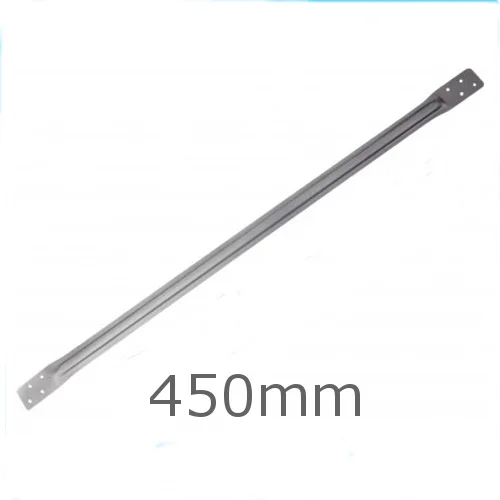

Herringbone Joist Strut - 450mm centres

Length: 523mm
Weight: 119g
Herringbone Joist Strut HB450 provides the means to prevent sideways movement or the buckling of joists, a simple alternative to the labour intensive traditional timber noggins. Made from galvanised steel EN 10346 DX51D Z275. Joint centres - 400mm, Strut length - 480mm. Meets bracing requirements for long span domestic floors. In the interest of safety all corners are rounded. Only three sizes are needed to suit all standard nominal joist centres. Only two fixings per end are required.

Installation
  • Generally required in the centre of the span when floor joists exceed 2.5 metres.
  • Where spans exceed 4.5 metres two rows will be required at 1/3 and 2/3 of span.
  • Holes should be nailed using 30 x 3.75 square twist nails or equivalent screws.

Brand: TECO Model and Size: WM132x225
Delivery Time: 2 - 4 days
132mm x 225mm Welded Masonry Joist Hanger is designed to support 225mm high timber joist. The joist hanger's actual height is 215mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to t..
£9.21
£11.05 inc VAT
Add to Cart
Brand: TECO Model and Size: HD1200B100T
Delivery Time: In stock, 1-2 days
Galvanised Heavy Duty Restraint Strap 1200mm Bent 100mm Twisted 100mm is designed for lateral and horizontal restraint (as in roof trusses). The straps are produced from edge coated galvanised mild steel, also available in stainless steel. They are designed for 6mm and 25mm offse..
£3.56
£4.27 inc VAT
Add to Cart
Brand: TECO Model and Size: WNT - 47x306
Delivery Time: In stock, 1-2 days
Woody No Tag Joist Hanger 47 x 306mm is produced from 0.8mm thick pre-galvanised mild steel in accordance with the BS EN 10327:2004 DX51D+Z275 specifications. The hangers have been accordingly tested by Ceram Research, whereas the test results are available upon request. Also available in Stain..
£0.60
£0.72 inc VAT
Add to Cart
Brand: TECO Model and Size: TCSS 38mm M10
Delivery Time: In stock, 1-2 days
Diameter: 38mmTeeth Size: 0.9mm38mm M10 Single Sided Tooth Plate Timber Connector is designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are p..
£0.26
£0.31 inc VAT
Add to Cart
Brand: TECO Model and Size: LL - 63x450
Delivery Time: In stock, 1-2 days
63x450mm Woody Long Leg Joist Hanger is produced from 1.5mm thick pre-galvanised mild steel produced in accordance to  EN 10346 DX51D+Z275 with 50mm joist bearing. This timber to timber joist hanger designed for use in Loft Conversions where the hanger extends below the support.&..
£4.06
£4.87 inc VAT
Add to Cart
Brand: TECO Model and Size: WNT - 75x295
Delivery Time: In stock, 1-2 days
75mm x 295mm Woody No Tag Joist Hanger is produced from 0.8mm thick pre-galvanised mild steel in accordance with the BS EN 10327:2004 DX51D+Z275 specifications. The hangers have been accordingly tested by Ceram Research, whereas the test results are available upon request. Also available in Stainles..
£0.60
£0.72 inc VAT
Add to Cart
