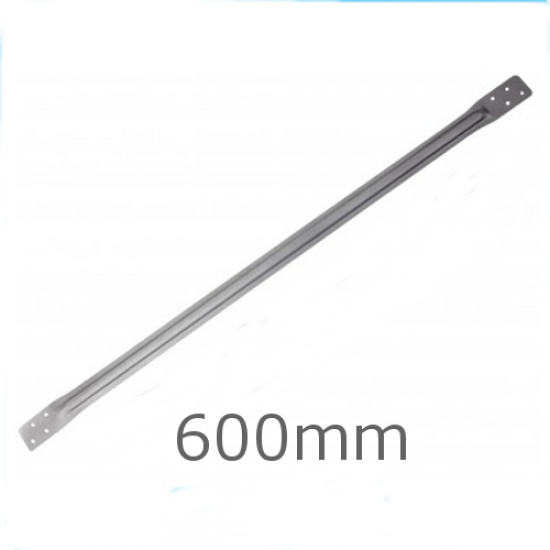

Herringbone Joist Strut - 600mm centres
Herringbone Joist Strut - 600mm centres
Price: £0.50 (£0.60 inc VAT)
- Product Code: A1-5591
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: HB600
- Weight: 140.00g
Herringbone Joist Strut - 600mm centres
Length: 680mm
Weight: 140g
Herringbone Joist Strut HB600 provides the means to prevent sideways movement or the buckling of joists, a simple alternative to the labour intensive traditional timber noggins. Made from galvanised steel EN 10346 DX51D Z275. Joint centres - 400mm, Strut length - 480mm. Meets bracing requirements for long span domestic floors. In the interest of safety all corners are rounded. Only three sizes are needed to suit all standard nominal joist centres. Only two fixings per end are required.
Installation
- Generally required in the centre of the span when floor joists exceed 2.5 metres.
- Where spans exceed 4.5 metres two rows will be required at 1/3 and 2/3 of span.
- Holes should be nailed using 30 x 3.75 square twist nails or equivalent screws.
