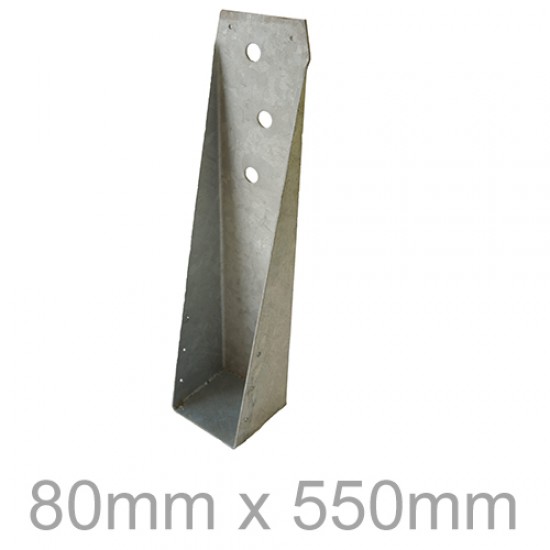

80x550mm Multi Truss Girder Hanger

80x550mm Multi Truss Girder Hanger
80x550mm Multi Truss Girder Hanger
Price: £63.06 (£75.67 inc VAT)
  • Product Code: A1-5242
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: GG - 80x550
  • Weight: 2,920.00g

80x550mm Multi Truss Girder Hanger

Width: 80mm
Height: 550mm
Thickness: 3mm
Weight: 2920g

80mm x 550mm Multi Truss Girder Hanger is a Heavy Duty Girder to Girder Hanger produced from 3mm thick mild steel, which is galvanised upon production. This hanger offers substantial safe working load of 29kN, meaning there is no fear of the hanger breaking off, if the given load is respected. It is tested by BRE.



The bolts set include 120 mm thread 3 no. M20 x 180 XOX BZP Bolts, 3 no. M20 x 65mm BZP Round Washers and 3 no. M20 x 40mm galvanised Round Washers. Bought separately.

SPECIFICATION

  • Galvanised after manufacture.
  • 3mm thick.
  • Safe Working Load 27kN,
  • Holed for M20 bolts.
  • Tested by BRE.
