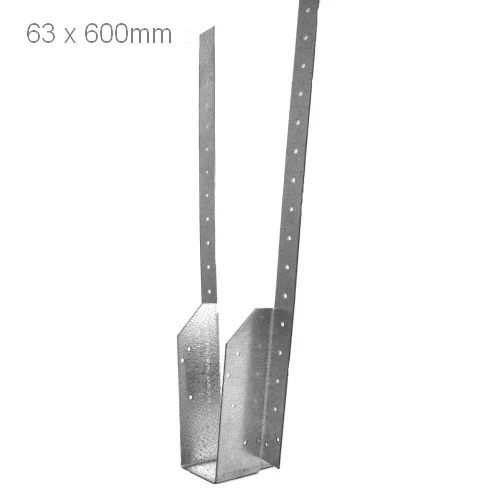

63x600mm Woody Long Leg Joist Hanger
63x600mm Woody Long Leg Joist Hanger
Price: £4.69 (£5.63 inc VAT)
- Product Code: A1-5182
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model: LL - 63x600
- Weight: 643.00g
63x600mm Woody Long Leg Joist Hanger
Width: 63mm
Height: 600mm
Thickness: 1.4mm
Weight: 643g
63mm x 600mm Woody Long Leg Joist Hanger is produced from 1.5mm thick pre-galvanised mild steel produced in accordance to EN 10346 DX51D+Z275 with 50mm joist bearing. It is especially designed for loft conversion projects. This joist hanger ls also available in stainless steel. The product also offers substantial safe working load of 7,11kN at 1.5mm deflection, meaning there is no fear of the hanger breaking off, if the given load of 28,04kN are respected. The hangers have been accordingly tested by Ceram Research, whereas the test results are available upon request.
.png)
FIXING INSTRUCTIONS for 63x600mm Woody Long Leg Joist Hanger
It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
SPECIFICATION
- Joist bearing 50mm.
- Also available in Stainless Steel.
- Tested by Ceram Research.
Long-Leg-Hangers_data_sheet.pdf
