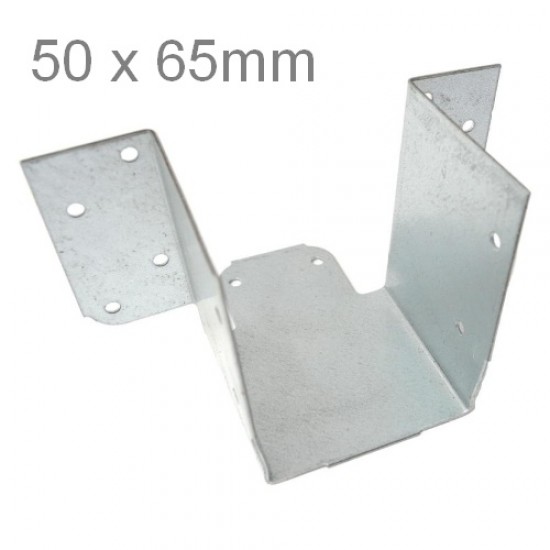

50x65mm Mini Mini Joist Hanger

50x65mm Mini Mini Joist Hanger
50x65mm Mini Mini Joist Hanger
Price: £0.53 (£0.64 inc VAT)
  • Product Code: A1-5018
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: MMINI - 50x65
  • Weight: 96.00g
Show other sizes

50x65mm Mini Mini Joist Hanger

Width: 50mm
Height: 65mm
Thickness: 1mm
Weight: 96g

50x65mm Mini Mini Joist Hanger is a timber to timber joist hanger suitable for light duty applications such as trimmers, ceiling joists and decking. The hanger is produced from 1mm thick pre-galvanised mild steel. The tag on the base of the hanger helps avoid rotation and aids fast, accurate locationing. This tag can easily be bent. The joist bearing is 50mm. Long term safe working load = 3.47 kN.

FIXING INSTRUCTIONS for 50x65mm Mini Mini Joist Hanger

All holes should be nailed using 30 x 3.75 Square Twist Nails or equivalent

SPECIFICATION

  • Galvanised Steel EN 10346 DX51D Z275,
  • Test by CERAM Research Ltd Notification Body No. 1289.
