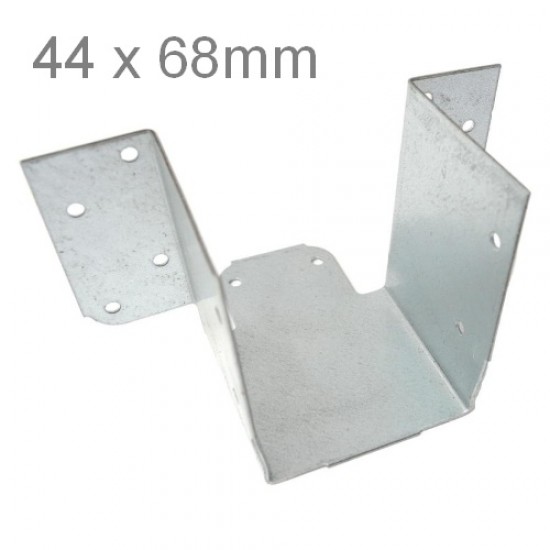

44x68mm Mini Mini Joist Hanger

44x68mm Mini Mini Joist Hanger
44x68mm Mini Mini Joist Hanger
Price: £0.53 (£0.64 inc VAT)
  • Product Code: A1-5017
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model: MMINI - 44x68
  • Weight: 96.00g
Show other sizes

44x68mm Mini Mini Joist Hanger

Width: 44mm
Height: 68mm
Thickness: 1mm
Weight: 96g

44x68mm Mini Mini Joist Hanger is a timber to timber joist hanger suitable for light duty applications such as trimmers, ceiling joists and decking. The hanger is produced from 1mm thick pre-galvanised mild steel. The tag on the base of the hanger helps avoid rotation and aids fast, accurate locationing. This tag can easily be bent. The joist bearing is 50mm. Long term safe working load = 3.47 kN.


FIXING INSTRUCTIONS for 44x68mm Mini Mini Joist Hanger

All holes should be nailed using 30 x 3.75 Square Twist Nails or equivalent

SPECIFICATION

  • Galvanised Steel EN 10346 DX51D Z275,
  • Test by CERAM Research Ltd Notification Body No. 1289.



Brand: TECO Model: FHM47/100
Delivery Time: In stock, 1-2 days
47mm x 100mm Single Piece Joist Hanger are designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. They are also suitable for many timber to timber applications by fixing the masonry flange securely to the timber or to steel beams using ap..
£1.80
£2.16 inc VAT
Brand: TECO Model: FHMR47X150R100
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£3.36
£4.03 inc VAT
Brand: TECO Model: DPM300B
Delivery Time: In stock, 1-2 days
Damp Proof Membrane is intended for use within solid concrete floors to prevent the rise of moisture or damp through structure flooring. Suitable for most construction damp proofing requirements. The DPM can be used as either below the slab application, directly below the flooring surface or in a sa..
£69.00
£82.80 inc VAT
Brand: TECO Model: SST130
Delivery Time: In stock, 1-2 days
130mm Starter Ties are used where new walls are being built directly from existing brickwork for use where there is a cavity. Grade 1.4301 austenitic stainless steel to EN 10088-2.FeaturesStainless steel,Diameter 4mm,Supplied complete with nylon plug. Specification Grade 1.4301 austenitic ..
£14.13
£16.96 inc VAT
Brand: TECO Model: WR44X250R100
Delivery Time: 2 - 4 days
44mm x 250mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
£4.98
£5.98 inc VAT
Brand: TECO Model: STD - 90x300
Delivery Time: In stock, 1-2 days
90x300mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..
£1.13
£1.36 inc VAT
