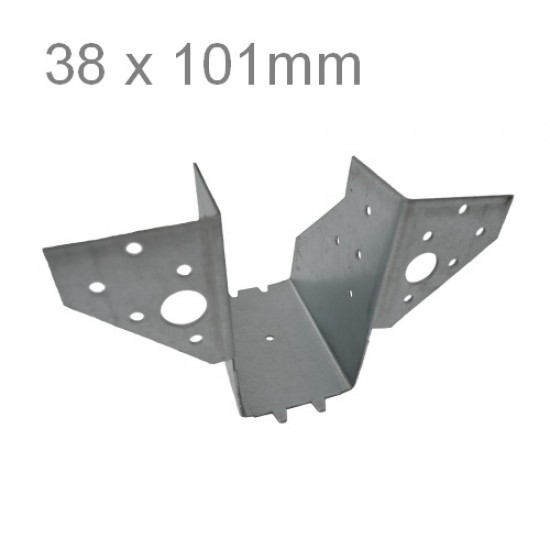

38x101mm Multifunctional Mini Joist Hanger
38x101mm Multifunctional Mini Joist Hanger
Price: £1.73 (£2.08 inc VAT)
- Product Code: A1-5014
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: MFM - 38x101
- Weight: 226.00g
38x101mm Multifunctional Mini Joist Hanger
Width: 38mm
Height: 101mm
Thickness: 1mm
Weight: 226g
38mm x 101mm Multifunctional Mini Joist Hanger is a Face Fix Joist Hanger, produced from 1.2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 x nail or screws. It can bolted, screwed, coach screwed or nailed.
FIXING INSTRUCTIONS for 38x101mm Multifunctional Mini Joist Hanger
- It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
- The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.
SPECIFICATION
- Location tabs aid fast accurate alignment of the hanger.
- M12 bolt holes.
- 85mm bearing.
- Also available in Stainless Steel.
- Tested by Ceram Research.
Face-Fix-Hangers_data_sheet.pdf
