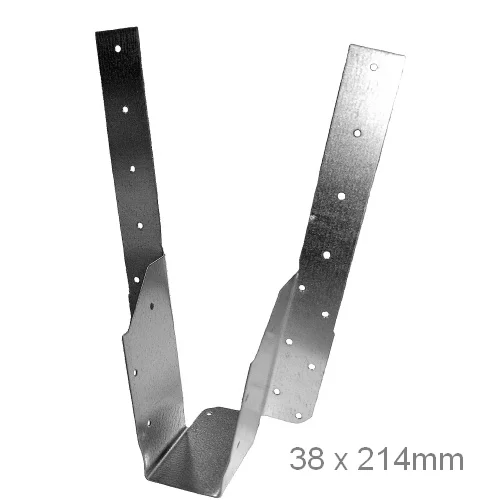

38x216mm Woody Short Leg Joist Hanger

38x216mm Woody Short Leg Joist Hanger
38x216mm Woody Short Leg Joist Hanger
Price: £0.78 (£0.94 inc VAT)
  • Product Code: A1-5029
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: SHORTLEG - 38x216
  • Weight: 159.00g
Show other sizes

38x216mm Woody Short Leg Joist Hanger

Width: 38mm
Height: 216mm
Thickness: 0.8mm
Weight: 159g

38mm x 216mm Woody Short Leg Joist Hanger is produced from 1mm thick pre-galvanised mild steel produced in accordance to  EN BS 10327:2004 DX51D+Z275.  It has a shortened leg, and with a 50mm joist bearing.  The hanger includes a base tag which can significantly contribute to faster and more accurate installation. The base tag would avoid unnecessary rotation. Long term safe working load = 3.96 kN.


FIXING INSTRUCTIONS for 38x216mm Woody Short Leg Joist Hanger

  • All holes should be nailed using 30 x 3.75 squaretwist nails or equivalent, for stainless steelproducts use 30 x 3.75 stainless steel annular ringshank nails.
  • Always ensure that compatible corrosionresistant fixings are used, i.e. do not usegalvanised fixings with stainless steel products orvice versa.
  • Tag on the base of the hanger to help avoid rotation and aid fast, accurate location. The tagcan be bent if not required.

SPECIFICATION

  • Joist bearing 50mm.
  • Also available in Stainless Steel.
  • Tested by Ceram Research.
