100mm Galvanised Fishtailed Frame Cramp
100mm Galvanised Fishtailed Frame Cramp
Price: £0.34 (£0.41 inc VAT)
- Product Code: A1-5706
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: FFCPG150
- Weight: 64.00g

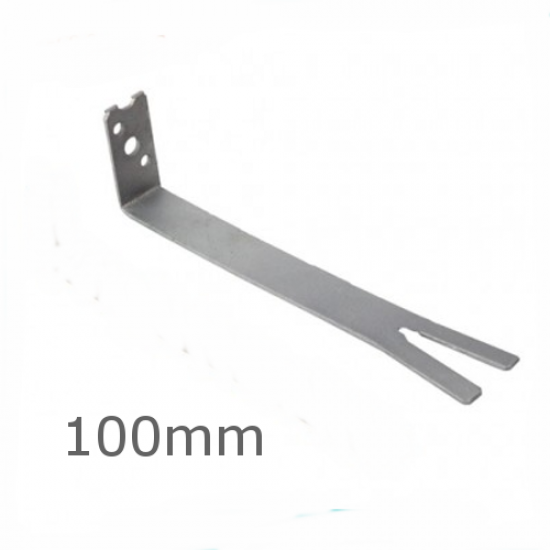

100mm Galvanised Fishtailed Frame Cramp
Length: 100mm
Width: 25mm
Thickness: 2.3mm
Weight: 64g
100mm Galvanised Fishtailed Frame Cramp is traditionally used for fixing wooden door and window frames into block work. Frame Cramps can also be used for restraining masonry to new and existing structures in non-structural applications and can easily be shot fired into steel work. Available in galvanised steel EN 10346 DX51D Z275 with fishtailed end.
Features
- 50mm upstand for easy fixing.
- Two 6mm holes and one 8mm hole.
Installation
- Use appropriate fixings.
- Always ensure that compatible corrosion resistant fixings are used i.e. do not use galvanised fixings with stainless steel products or vice versa.
Brand: TECO
Model and Size: WS75x250S100
Delivery Time: 2 - 4 days
Straddle: 100mm75mm x 250mm Masonry Straddle Joist Hangers are designed for similar applications and installation as the standard Masonry Joist Hangers. The Masonry Straddle hanger is two hangers joined together by a plate on the masonry flange to enable exact alignment of two joists positioned..
£12.74
£15.29 inc VAT
Brand: TECO
Model and Size: STD - 47x277
Delivery Time: In stock, 1-2 days
47x277mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..
£0.95
£1.14 inc VAT
Brand: TECO
Model and Size: FHMR47X225R150
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£4.45
£5.34 inc VAT
Brand: TECO
Model and Size: WM50x125
Delivery Time: 2 - 4 days
50mm x 125mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£2.03
£2.44 inc VAT
Brand: TECO
Model and Size: GGBOLT - M20x180
Delivery Time: In stock, 1-2 days
Size: M20 x 180mmM20 x 180mm Multi Truss Girder Hanger Bolt is a Heavy Duty Girder to Girder Hanger Bolt. The product also offers substantial safe working load of 29kN, tested by BRE.The bolts sets include 120 mm thread 3 no. M20 x 180 XOX BZP Bolts, 3 no. M20 x 65mm BZP Round Washers..
£23.51
£28.21 inc VAT
Brand: TECO
Model and Size: CSHBZPM10x130
Delivery Time: In stock, 1-2 days
10mm - 130mm length Zinc Plated Coach Bolt. Cup Square Hex Bolts are also referred to as Coach Bolts or Carriage Bolts. They have a dome head with a square underneath for locking into the timber. Bright zinc plated or hot dipped spun galvanised to EN ISO 1461:2009 FeaturesSupplied com..
£13.91
£16.69 inc VAT
