200mm Galvanised Fishtailed Frame Cramp
200mm Galvanised Fishtailed Frame Cramp
Price: £0.46 (£0.55 inc VAT)
- Product Code: A1-5708
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: FFCPG250
- Weight: 106.00g

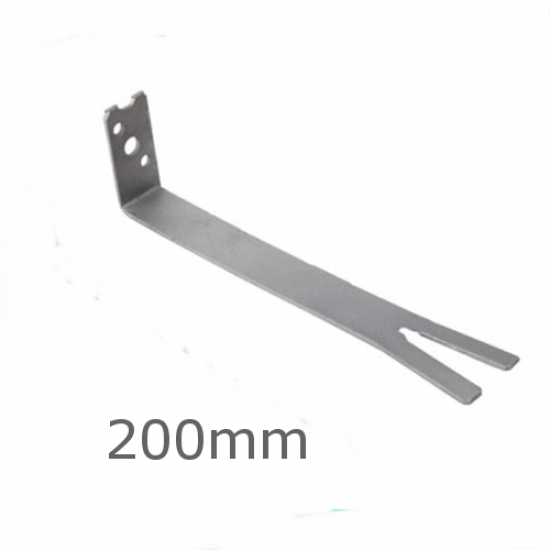

200mm Galvanised Fishtailed Frame Cramp
Length: 200mm
Width: 25mm
Thickness: 2.3mm
Weight: 106g
200mm Galvanised Fishtailed Frame Cramp is traditionally used for fixing wooden door and window frames into block work. Frame Cramps can also be used for restraining masonry to new and existing structures in non-structural applications and can easily be shot fired into steel work. Available in galvanised steel EN 10346 DX51D Z275 with fishtailed end.
Features
- 50mm upstand for easy fixing.
- Two 6mm holes and one 8mm hole.
Installation
- Use appropriate fixings.
- Always ensure that compatible corrosion resistant fixings are used i.e. do not use galvanised fixings with stainless steel products or vice versa.
