90mm Handed Arris Rail Brackets (Bolt on Type) - pair

90mm Handed Arris Rail Brackets (Bolt on Type) - pair
90mm Handed Arris Rail Brackets (Bolt on Type) - pair
Price: £3.75 (£4.50 inc VAT)
  • Product Code: A1-5481
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: ARH
  • Weight: 410.00g

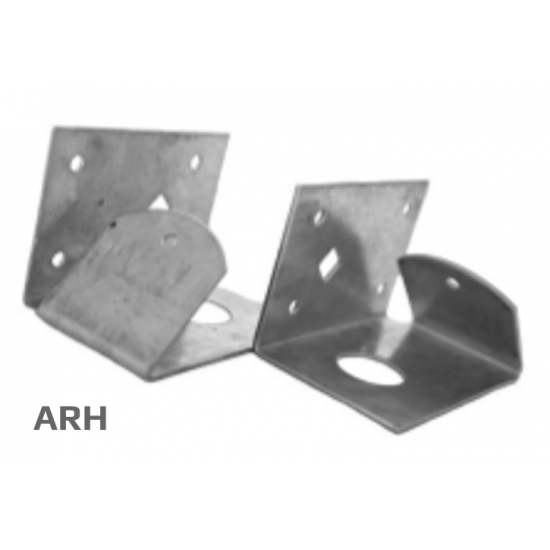

90mm Handed Arris Rail Brackets (Bolt on Type) - pair

Width: 190mm
Weight: 410g

90mm Handed Arris Rail Brackets are suitable for fitting plain unended Arris rails to blank posts. Made from galvanised steel EN 10346 DX51D Z275.

This Arris rail support bracket allows a triangular Arris rail to be attached to a post without the need for a mortise hole in the post or the rail being ended to slot into that hole. They are quick and easy to fit. You can move the rails up and down the post to position them where you need them. You rest the Arris rail down into the bracket and attach it with just a single screw, which could allow for a relatively quick removal. These brackets are handed left or right.


Sold in pairs

Brand: TECO Model and Size: FFCPG150
Delivery Time: In stock, 1-2 days
100mm Galvanised Fishtailed Frame Cramp is traditionally used for fixing wooden door and window frames into block work. Frame Cramps can also be used for restraining masonry to new and existing structures in non-structural applications and can easily be shot fired into steel work. Available in galva..
£0.34
£0.41 inc VAT
Add to Cart
Brand: TECO Model and Size: LL - 125x450
Delivery Time: In stock, 1-2 days
125x450mm Woody Long Leg Joist Hanger is produced from 1.5mm thick pre-galvanised mild steel produced in accordance to  EN 10346 DX51D+Z275 with 50mm joist bearing. This timber to timber joist hanger designed for use in Loft Conversions where the hanger extends below the support...
£5.09
£6.11 inc VAT
Add to Cart
Brand: TECO Model and Size: HD1600B100
Delivery Time: In stock, 1-2 days
Galvanised Heavy Duty Restraint Strap 1600mm Bent 100mm is designed for lateral and horizontal restraint (as in roof trusses). The straps are produced from edge coated galvanised mild steel, also available in stainless steel. They are designed for 6mm and 25mm offset centres holes.APP..
£4.53
£5.44 inc VAT
Add to Cart
Brand: TECO Model and Size: FHMR47X150R150
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£3.85
£4.62 inc VAT
Add to Cart
Brand: TECO Model and Size: WR90X225R100
Delivery Time: 2 - 4 days
90mm x 225mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
£5.84
£7.01 inc VAT
Add to Cart
Brand: TECO Model and Size: TCDS 50mm M12
Delivery Time: In stock, 1-2 days
Diameter: 50mmTeeth Size: 0.9mm 50mm M12 Double Sided Tooth Plate Timber Connector is designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are ..
£0.34
£0.41 inc VAT
Add to Cart
