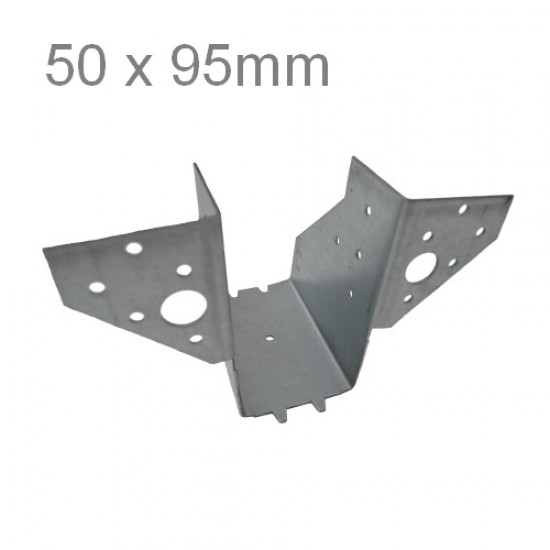

50x95mm Multifunctional Mini Joist Hanger

50x95mm Multifunctional Mini Joist Hanger
50x95mm Multifunctional Mini Joist Hanger
Price: £1.73 (£2.08 inc VAT)
  • Product Code: A1-5020
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: MFM - 50x95
  • Weight: 226.00g
Show other sizes

50x95mm Multifunctional Mini Joist Hanger

Width: 50mm
Height: 95mm
Thickness: 1mm
Weight: 226g

50mm x 95mm Multifunctional Mini Joist Hanger is a Face Fix Joist Hanger, produced from 1.2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 x nail or screws. It can bolted, screwed, coach screwed or nailed.




FIXING INSTRUCTIONS for 50x95mm Multifunctional Mini Joist Hanger

  • It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
  • The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.

SPECIFICATION

  • Location tabs aid fast accurate alignment of the hanger.
  • M12 bolt holes.
  • 85mm bearing.
  • Also available in Stainless Steel.
  • Tested by Ceram Research.
