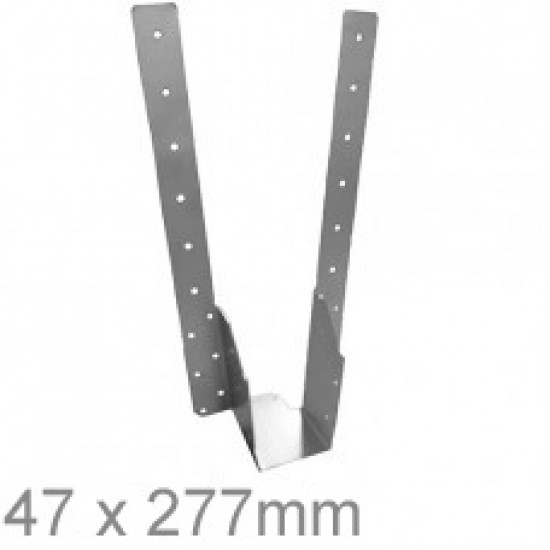

47x277mm Woody Standard Joist Hanger

47x277mm Woody Standard Joist Hanger
47x277mm Woody Standard Joist Hanger
Price: £0.95 (£1.14 inc VAT)
  • Product Code: A1-5238
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: STD - 47x277
  • Weight: 212.00g
Show other sizes

47x277mm Woody Standard Joist Hanger

Width: 47mm
Height: 277mm
Thickness: 0.8mm
Weight: 212g
47x277mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significantly contribute to faster and more accurate installation and to avoid unnecessary rotation. This tag can easily be bent if it is not necessary.

Long term safe working load = 6 kN. The hangers have been accordingly tested by Ceram Research. The test results are available upon request.



FIXING INSTRUCTIONS for 47x277mm Woody Standard Joist Hanger

  • 30mm x 3.75mm Square Twisted nails should be used for nailing the holes during installation.
  • For stainless steel products use 30mm x 3.75mm stainless steel annular ring shank nails.
  • Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.
  • The tag can be bent if not required.

SPECIFICATION

  • Joist bearing 50mm.
  • Also available in Stainless Steel.
  • Tested by Ceram Research.
