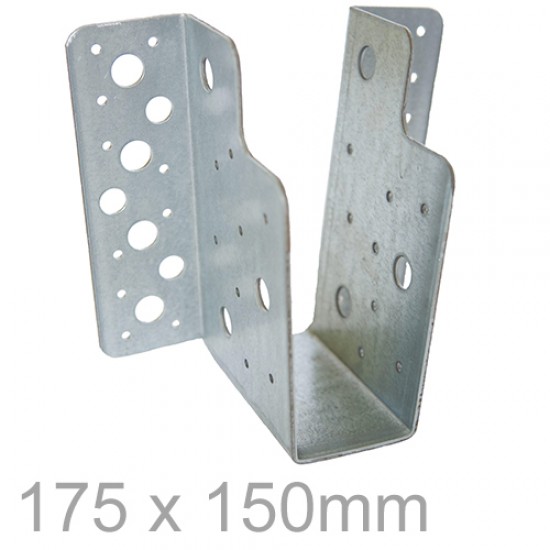

175x150mm Heavy Duty Face Fix Joist Hanger

175x150mm Heavy Duty Face Fix Joist Hanger
175x150mm Heavy Duty Face Fix Joist Hanger
Price: £10.13 (£12.16 inc VAT)
  • Product Code: A1-5196
  • Delivery Time: 2 - 3 Days
  • Brand: TECO
  • Model and Size: HWTNT175
  • Weight: 1.03g
Show other widths

175x150mm Heavy Duty Face Fix Joist Hanger

Width: 175mm
Height: 150mm
Thickness: 2.5mm
Weight: 1.03g

175mm x 150mm Heavy Duty Face Fix Joist Hanger is especially designed for timber to timber, concrete or masonry fixings.  The hanger is produced from 2.5mm thick pre-galvanised mild steel and in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275.



SPECIFICATION

  • All hangers come up to 150mm deep
  • M10 & M12 bolt holes for added versatility
  • 95mm bearing
  • Nominal depth 150mm
  • Available in standard or with concealed flanges
  • Available also in stainless steel.

FIXING INSTRUCTIONS for 175x150mm Heavy Duty Face Fix Joist Hanger

  • In order of avoiding rotation, the hanger should exceed the half of the supported member depth.
  • Can be fully nailed, coach screwed and bolted.
  • 3no. M10 x 75mm Coach Screws on either side and the supported joist bolted through the hanger using an M12 Bolt
  • The safe working load also depends on the block strength and used fixings.
