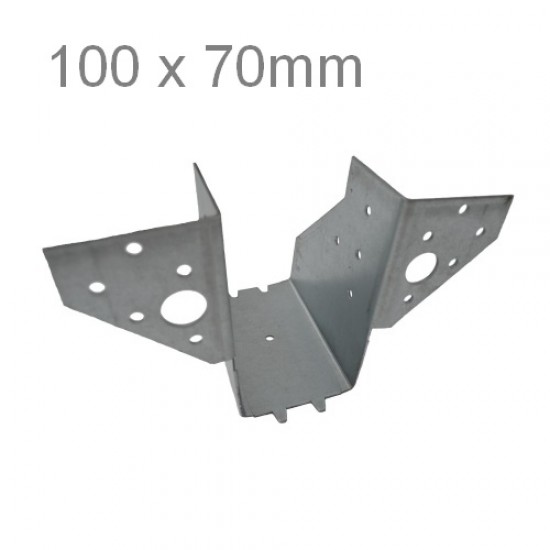

Multifunctional Mini Joist Hanger 100 x 70mm is one of 1.6mm Face Fix Joist Hangers, available in five different sizes with a 86mm bearing. The hanger is produced from pre-galvanised mild steel thickness of only 1,6mm, all in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 x nail or screws.
FIXING INSTRUCTIONS for 100x70mm Multifunctional Mini Joist Hanger
It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
