Light Duty Restraint Strap 1100mm Flat

Light Duty Restraint Strap 1100mm Flat
Price: £2.02 (£2.42 inc VAT)
  • Product Code: A1-5357
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model: LD1100F
  • Weight: 559.00g
Show other lengths

Need custom bends or twists?

Fill below and send for a quote.

Strap #1

/
Total length of the strap
mm
Length to
/
mm
angle
degrees
Quantity

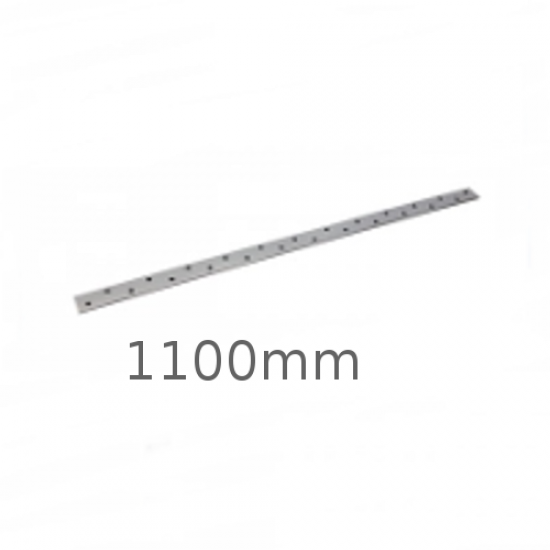

Galvanised Light Duty Restraint Strap 1100mm Flat

Length: 1100mm
Width: 28mm
Thickness: 2.4mm
Weight: 559g

Galvanised Light Duty Restraint Strap 1100mm Flat is designed for vertical restraint, for example fixing wall plates to masonry. The straps are produced from edge coated galvanised mild steel, also available in stainless steel. They are designed for 6mm and 25mm offset centres holes.

SPECIFICATION

The straps are manufactured in accordance with the BS 5268 Part 3 of the Building Regulations.

Please note: 1-3 metre lengths come from a coil rather than a solid rigid bar. The physical characteristics of the metal mean that after a certain length they can bend rather than being flat rigid. It is not a question of any fault but rather the ‘nature of the beast’. The phrase: “straps are flat” is not misleading! It means they are not bent or twisted; at no point is there any claim that they are straight and true. Strap material is edge-coat galvanised which is required by the standard. This process, and the fact that the material is a coil does cause deflection, and the longer the length the more it is apparent.

Brand: TECO Model: SST180
Delivery Time: In stock, 1-2 days
180mm Starter Ties are used where new walls are being built directly from existing brickwork. There is a drip feature for use where there is a cavity and a new wall needs to be built. Grade 1.4301 austenitic stainless steel to EN 10088-2. Features Stainless steel, Diameter 4mm,Su..
£19.00
£22.80 inc VAT
Brand: TECO Model: WM63x125
Delivery Time: 2 - 4 days
63mm x 125mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£4.36
£5.23 inc VAT
Brand: TECO Model: WSTDGM24
Delivery Time: In stock, 1-2 days
Diameter: 44mm M24 Standard Round Washers are made from heavy duty hot dipped spun galvanised steel. Suitable for a variety of applications where a heavy washer is required. InstallationAlways ensure that compatible corrosion resistant nuts & washers are used, i.e. do not use galv..
£8.10
£9.72 inc VAT
Brand: TECO Model: TSR64C
Delivery Time: In stock, 1-2 days
Usage: to cut precision grooves or recesses (daps) for Split Ring and Shear Plate Connectors.A spare set. ..
£359.66
£431.59 inc VAT
Brand: TECO Model: WR90X200R100
Delivery Time: 2 - 4 days
90mm x 200mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
£5.70
£6.84 inc VAT
Brand: TECO Model: LD1200T100
Delivery Time: In stock, 1-2 days
Galvanised Light Duty Restraint Strap 1200mm Twisted 100mm is designed for vertical restraint, for example fixing wall plates to masonry. The straps are produced from edge coated galvanised mild steel, also available in stainless steel. They are designed for 6mm and 25mm off..
£2.20
£2.64 inc VAT
