100mm Damp Proof Course - DPC

100mm Damp Proof Course - DPC
100mm Damp Proof Course - DPC
Price: £3.39 (£4.07 inc VAT)
  • Product Code: A1-5636
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model: DPC100
  • Weight: 1,060.00g
Show other widths

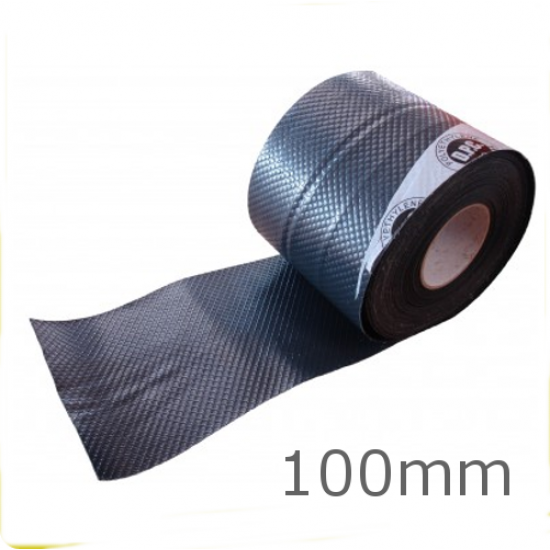

100mm Damp Proof Course - DPC

Length: 30000mm
Width: 100mm
Weight: 1060g
100mm Damp Proof Course - DPC provides damp proof protection, preventing ingress of external moisture. Suitable for brick, block, stone or concrete walls. Suitable for vertical and horizontal applications.



Specification
  • 500mu.
  • Produced to BS 6515:84.
  • Suitable for withstanding a compressive load of up to 2.5 N/mm2 as long as no lateral load is applied.
Installation
  • Installation should be according to the code of practice CP102:1973 and normal DPC good practice procedures set in BS 5628 should be followed.
  • For internal walls, DPC should be installed at the base of load bearing walls and linked with any adjoining DPM.
  • The DPC should be at least the width the partition it is applied to and lapped by at least 100mm when two DPCs are joined and linked with any adjoining DPM.
Brand: TECO Model: FFCS200
Delivery Time: In stock, 1-2 days
150mm Stainless Steel Frame Cramp is traditionally used for fixing wooden door and window frames into block work. Frame Cramps can also be used for restraining masonry to new and existing structures in non-structural applications and can easily be shot fired into steel work. Available in G..
£0.98
£1.18 inc VAT
Add to Cart
Brand: TECO Model: WSTV
Delivery Time: In stock, 1-2 days
1200mm Ferritic Stainless Steel Wall Starter Kit joins new walls to existing masonry, suitable for both internal and external brick or block walls. The connectors can be slotted together up to a maximum of 8 metres or 3 storeys high, from 60 to 250mm thick. Made from Ferritic Stainless Steel (G..
£9.19
£11.03 inc VAT
Add to Cart
Brand: TECO Model: STD - 90x300
Delivery Time: In stock, 1-2 days
90x300mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..
£1.13
£1.36 inc VAT
Add to Cart
Brand: TECO Model: WM75x200
Delivery Time: 2 - 4 days
75mm x 200mm Welded Masonry Joist Hanger is designed to support 200mm high timber joist. The joist hanger's actual height is 190mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to ti..
£4.86
£5.83 inc VAT
Add to Cart
Brand: TECO Model: WM44x100
Delivery Time: 2 - 4 days
44mm x 100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timber or..
£1.90
£2.28 inc VAT
Add to Cart
Brand: TECO Model: HD1600B100
Delivery Time: In stock, 1-2 days
Galvanised Heavy Duty Restraint Strap 1600mm Bent 100mm is designed for lateral and horizontal restraint (as in roof trusses). The straps are produced from edge coated galvanised mild steel, also available in stainless steel. They are designed for 6mm and 25mm offset centres holes.APP..
£4.53
£5.44 inc VAT
Add to Cart
