150mm Damp Proof Course - DPC
150mm Damp Proof Course - DPC
Price: £5.09 (£6.11 inc VAT)
- Product Code: A1-5638
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model: DPC150
- Weight: 1,700.00g

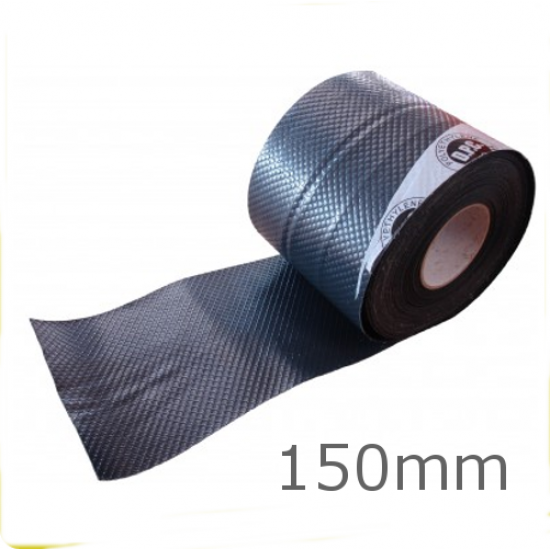

150mm Damp Proof Course - DPC
Length: 30000mm
Width: 150mm
Weight: 1700g
150mm Damp Proof Course - DPC provides damp proof protection, preventing ingress of external moisture. Suitable for brick, block, stone or concrete walls. Suitable for vertical and horizontal applications.
Specification
- 500mu.
- Produced to BS 6515:84.
- Suitable for withstanding a compressive load of up to 2.5 N/mm2 as long as no lateral load is applied.
Installation
- Installation should be according to the code of practice CP102:1973 and normal DPC good practice procedures set in BS 5628 should be followed.
- For internal walls, DPC should be installed at the base of load bearing walls and linked with any adjoining DPM.
- The DPC should be at least the width the partition it is applied to and lapped by at least 100mm when two DPCs are joined and linked with any adjoining DPM.
Brand: TECO
Model: WS63x225S100
Delivery Time: 2 - 4 days
Straddle: 100mm63mm x 225mm Masonry Straddle Joist Hangers are designed for similar applications and installation as the standard Masonry Joist Hangers. The Masonry Straddle hanger is two hangers joined together by a plate on the masonry flange to enable exact alignment of two joists positioned..
£12.17
£14.60 inc VAT
Brand: TECO
Model: WM75x250
Delivery Time: 2 - 4 days
75mm x 250mm Welded Masonry Joist Hanger is designed to support 250mm high timber joist. The joist hanger's actual height is 240mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to ti..
£5.50
£6.60 inc VAT
Brand: TECO
Model: WM90x175
Delivery Time: 2 - 4 days
90mm x 175mm Welded Masonry Joist Hanger is designed to support 175mm high timber joist. The joist hanger's actual height is 165mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to ti..
£4.85
£5.82 inc VAT
Brand: TECO
Model: MGTS - 38x100
Delivery Time: In stock, 1-2 days
38mm x100mm Mini Girder Truss Shoe is a Face Fix Timber Hanger with a 85mm bearing and substantial safe working load of 5.25kN. The hanger is produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. The TECO Mini Girder Truss Sh..
£1.06
£1.27 inc VAT
Brand: TECO
Model: WM90x100
Delivery Time: 2 - 4 days
90mm x 100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£4.56
£5.47 inc VAT
Brand: TECO
Model: WM63x125
Delivery Time: 2 - 4 days
63mm x 125mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£4.36
£5.23 inc VAT
