112mm Damp Proof Course - DPC

112mm Damp Proof Course - DPC
112mm Damp Proof Course - DPC
Price: £3.39 (£4.07 inc VAT)
  • Product Code: A1-5637
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: DPC112
  • Weight: 1,190.00g
Show other widths

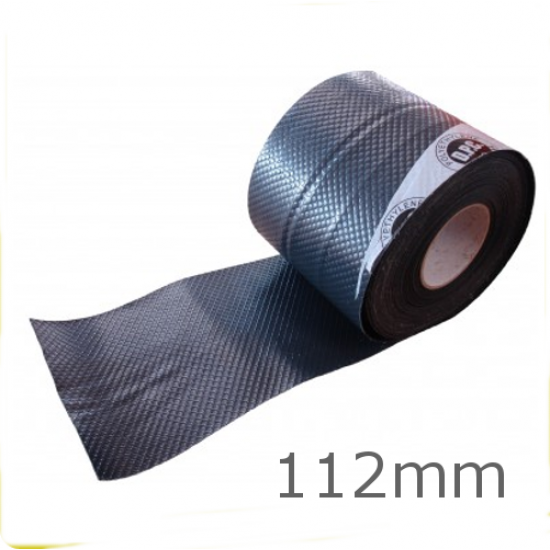

112mm Damp Proof Course - DPC

Length: 30000mm
Width: 112mm
Weight: 1190g
112mm Damp Proof Course - DPC provides damp proof protection, preventing ingress of external moisture. Suitable for brick, block, stone or concrete walls. Suitable for vertical and horizontal applications.



Specification
  • 500mu.
  • Produced to BS 6515:84.
  • Suitable for withstanding a compressive load of up to 2.5 N/mm2 as long as no lateral load is applied.
Installation
  • Installation should be according to the code of practice CP102:1973 and normal DPC good practice procedures set in BS 5628 should be followed.
  • For internal walls, DPC should be installed at the base of load bearing walls and linked with any adjoining DPM.
  • The DPC should be at least the width the partition it is applied to and lapped by at least 100mm when two DPCs are joined and linked with any adjoining DPM.
    Brand: TECO Model and Size: TCDS 76mm M12
    Delivery Time: In stock, 1-2 days
    Diameter: 76mmTeeth Size: 1.2mm76mm M12 Double Sided Tooth Plate Timber Connector is designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are p..
    £1.00
    £1.20 inc VAT
    Add to Cart
    Brand: TECO Model and Size: SRTCSS 102mm
    Delivery Time: In stock, 1-2 days
    Diameter: 102mm102mm Stainless Steel Split Ring Timber Connector is designed for heavy shear loads in timber to timber connections.The Split Ring with the bevelled inside and outside face makes it easier to insert in the pre-cut grooves and also gives greater load capacity.The Ring is..
    £20.73
    £24.88 inc VAT
    Add to Cart
    Brand: TECO Model and Size: EMLS225
    Delivery Time: In stock, 1-2 days
    225mm Stainless Steel Coiled Mesh Lath is produced for brick and block work reinforcement. Primarily usage is to prevent cracking. SpecificationGalvanised steel EN 10346 DX51D Z275,Available in 20 metre coilsInstallation Overlap by a minimum of 75mm when joining two lengths together.G..
    £62.29
    £74.75 inc VAT
    Add to Cart
    Brand: TECO Model and Size: WR44X200R100
    Delivery Time: 2 - 4 days
    44mm x 200mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
    £4.60
    £5.52 inc VAT
    Add to Cart
    Brand: TECO Model and Size: WM90x250
    Delivery Time: 2 - 4 days
    90mm x 250mm Welded Masonry Joist Hanger is designed to support 250mm high timber joist. The joist hanger's actual height is 240mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to ti..
    £6.35
    £7.62 inc VAT
    Add to Cart
    Brand: TECO Model and Size: WR100X250R100
    Delivery Time: 2 - 4 days
    100mm x 250mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but ..
    £6.98
    £8.38 inc VAT
    Add to Cart
