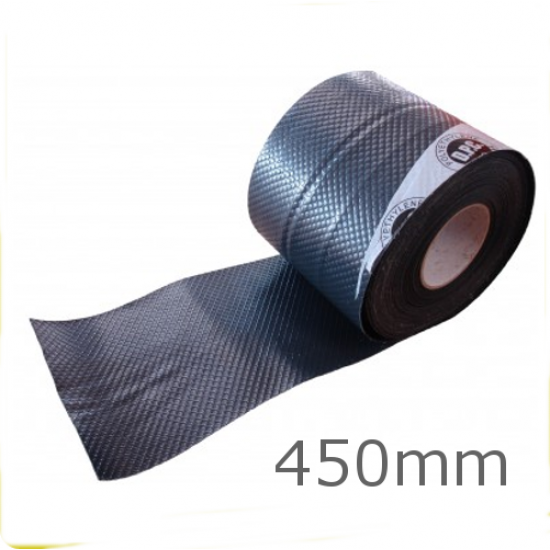

450mm Damp Proof Course - DPC

Length: 30000mm
Width: 450mm
Weight: 5020g
450mm Damp Proof Course - DPC provides damp proof protection, preventing ingress of external moisture. Suitable for brick, block, stone or concrete walls. Suitable for vertical and horizontal applications.



Specification
  • 500mu.
  • Produced to BS 6515:84.
  • Suitable for withstanding a compressive load of up to 2.5 N/mm2 as long as no lateral load is applied.
Installation
  • Installation should be according to the code of practice CP102:1973 and normal DPC good practice procedures set in BS 5628 should be followed.
  • For internal walls, DPC should be installed at the base of load bearing walls and linked with any adjoining DPM.
  • The DPC should be at least the width the partition it is applied to and lapped by at least 100mm when two DPCs are joined and linked with any adjoining DPM.
