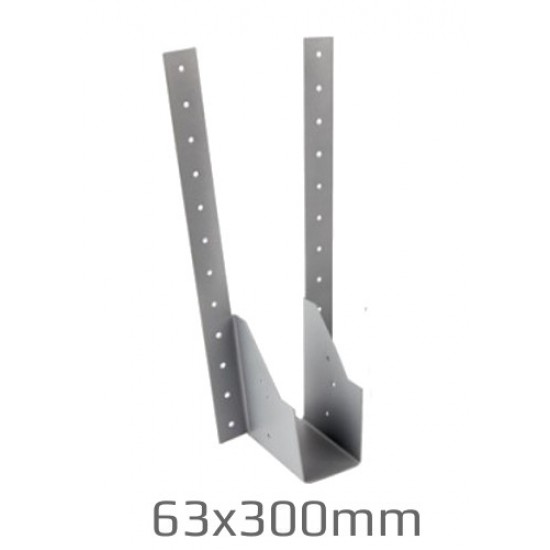

63x300mm Girder Truss Shoe

63x300mm Girder Truss Shoe
63x300mm Girder Truss Shoe
Price: £3.33 (£4.00 inc VAT)
  • Product Code: A1-5026
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: GTS - 63x300
  • Weight: 293.00g
Show other widths

63x300mm Girder Truss Shoe

Width: 63mm
Height: 300mm
Thickness: 1.2mm
Weight: 293g
63mm x 300mm Girder Truss Shoe is especially designed for supporting trussed rafters. The hanger is produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. The hanger includes a base tag which can significantly contribute to faster and more accurate installation and to avoid unnecessary rotation. This base tag can easily be bent where necessary. The girder shoe offers long term safe working load of 7.27kN at 1.5mm deflection.  The Girder Truss Shoes have been tested by Ceram Research - the test results are available upon request.


SPECIFICATION

  • Especially designed for supporting trussed rafters,
  • Tag on the base of the hanger helps avoid rotation and aids fast, accurate location,
  • The Tag can easily be bent if not required.
  • Bearing 85mm,
  • Safe Working Load 7.55kN,
  • Pre Galvanised Mild Steel to BS EN 10327:2004 DX51D+Z275
  • Also available in Stainless Steel.
  • Tested by Ceram Research.
FIXING INSTRUCTIONS

It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
