50mm M10mm Galvanised Steel Single Sided Tooth Plate Timber Connector

50mm M10mm Galvanised Steel Single Sided Tooth Plate Timber Connector
50mm M10mm Galvanised Steel Single Sided Tooth Plate Timber Connector
Price: £0.48 (£0.58 inc VAT)
  • Product Code: A1-5308
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: TCSS 50mm M10
  • Weight: 13.00g
Show other diameters of M10 Show all other sizes

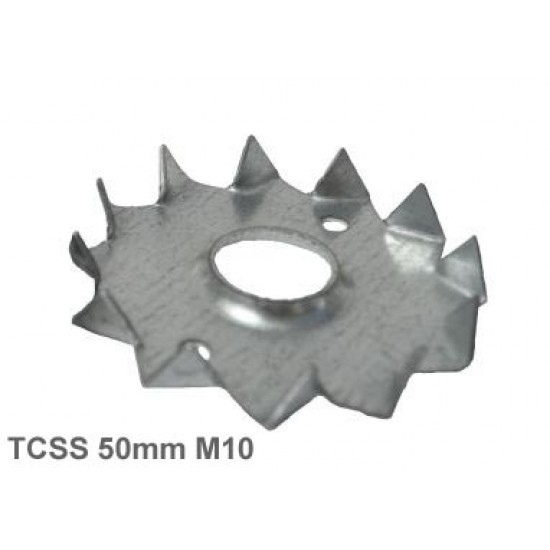

50mm M10mm Galvanised Steel Single Sided Tooth Plate Timber Connector

Weight: 13g

Diameter50mm
Teeth Size: 0.9mm

50mm M10 Single Sided Tooth Plate Timber Connector is designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are produced from pre-galvanised steel, in accordance to the BS EN 10346:2004 DX51D+Z275. Also available in stainless steel option.


SPECIFICATION

All the products are manufactured in accordance with the BS EN 14545:2008.

INSTALLATION

Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.
