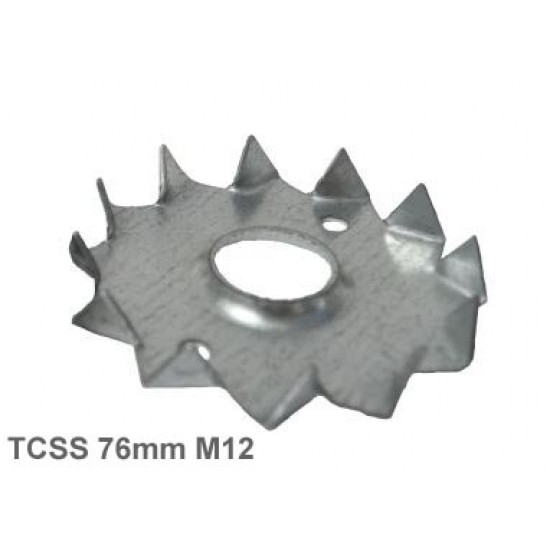

76mm M12mm Galvanised Steel Single Sided Tooth Plate Timber Connector

76mm M12mm Galvanised Steel Single Sided Tooth Plate Timber Connector
76mm M12mm Galvanised Steel Single Sided Tooth Plate Timber Connector
Price: £1.16 (£1.39 inc VAT)
  • Product Code: A1-5314
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: TCSS 76mm M12
  • Weight: 38.00g
Show other diameters of M12 Show all other sizes

76mm M12mm Galvanised Steel Single Sided Tooth Plate Timber Connector

Weight: 38g

Diameter76mm
Teeth Size: 1.2mm

76mm M12 Single Sided Tooth Plate Timber Connectoris designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are produced from pre-galvanised steel, in accordance to the BS EN 10346:2004 DX51D+Z275. Also available in stainless steel option.


SPECIFICATION

All the products are manufactured in accordance with the BS EN 14545:2008.

INSTALLATION

Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.

Brand: TECO Model and Size: WM44x150
Delivery Time: 2 - 4 days
44mm x 150mm Welded Masonry Joist Hanger is designed to support 150mm high timber joist. The joist hanger's actual height is 140mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many ti..
£2.05
£2.46 inc VAT
Add to Cart
Brand: TECO Model and Size: EB3x15
Delivery Time: In stock, 1-2 days
15mm Galvanised Steel Plasterboard Edge Bead that is used to reinforce plasterboard edges by enclosing them in a rotective steel enclosure. It can be used with thin coat plaster or drylining paper tape.Specification Galvanised steel EN 10346 DX51D Z275..Installation Use appropriate fixings..
£2.93
£3.52 inc VAT
Add to Cart
Brand: TECO Model and Size: FHMR47X100R215
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£3.70
£4.44 inc VAT
Add to Cart
Brand: TECO Model and Size: TCSS 63mm M12
Delivery Time: In stock, 1-2 days
Diameter: 63mmTeeth Size: 1.2mm63mm M12 Single Sided Tooth Plate Timber Connector is designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are p..
£0.44
£0.53 inc VAT
Add to Cart
Brand: TECO Model and Size: FHM50/225
Delivery Time: In stock, 1-2 days
50mm x 225mm Single Piece Joist Hanger are designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. They are also suitable for many timber to timber applications by fixing the masonry flange securely to the timber or to steel beams using ap..
£26.63
£31.96 inc VAT
Add to Cart
Brand: TECO Model and Size: CSHBZPM12x200
Delivery Time: In stock, 1-2 days
12mm - 200mm length Zinc Plated Coach Bolt. Cup Square Hex Bolts are also referred to as Coach Bolts or Carriage Bolts. They have a dome head with a square underneath for locking into the timber. Bright zinc plated or hot dipped spun galvanised to EN ISO 1461:2009 FeaturesSupplied com..
£11.16
£13.39 inc VAT
Add to Cart
