63mm M16mm Galvanised Steel Single Sided Tooth Plate Timber Connector

63mm M16mm Galvanised Steel Single Sided Tooth Plate Timber Connector
63mm M16mm Galvanised Steel Single Sided Tooth Plate Timber Connector
Price: £0.73 (£0.88 inc VAT)
  • Product Code: A1-5313
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: TCSS 63mm M16
  • Weight: 27.00g
Show other diameters of M16 Show all other sizes

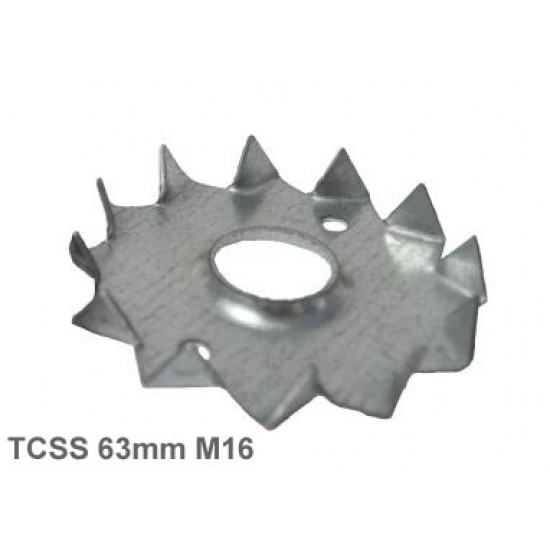

63mm M16mm Galvanised Steel Single Sided Tooth Plate Timber Connector

Weight: 27g

Diameter63mm
Teeth Size: 1.2mm

63mm M16 Single Sided Tooth Plate Timber Connector is designed to improve bolt performance in timber joints. The connector's teeth must be embedded fully into the timber contact surface in order to achieve their design capacity. The connectors are produced from pre-galvanised steel, in accordance to the BS EN 10346:2004 DX51D+Z275. Also available in stainless steel option.


SPECIFICATION

All the products are manufactured in accordance with the BS EN 14545:2008.

INSTALLATION

Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.
