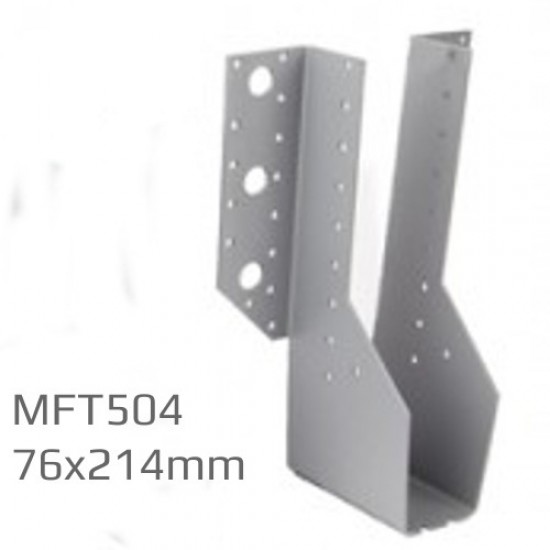

76x214mm Multifunctional Joist Hanger
76x214mm Multifunctional Joist Hanger
Price: £3.05 (£3.66 inc VAT)
- Product Code: A1-5263
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: MFT76/504BA - 76x214
- Weight: 624.00g
76x214mm Multifunctional Joist Hanger
Width: 76mm
Height: 214mm
Thickness: 2mm
Weight: 624g
76mm x 214mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 x nail or screws. It can bolted, screwed, coach screwed or nailed. Long term safe working load = 10.45 kN.
FIXING INSTRUCTIONS for 76x214mm Multifunctional Joist Hanger
- It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
- The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.
SPECIFICATION
- Location tabs aid fast accurate alignment of the hanger.
- M12 bolt holes.
- 85mm bearing.
- Also available in Stainless Steel.
- Tested by Ceram Research.
Face-Fix-Hangers_data_sheet.pdf
