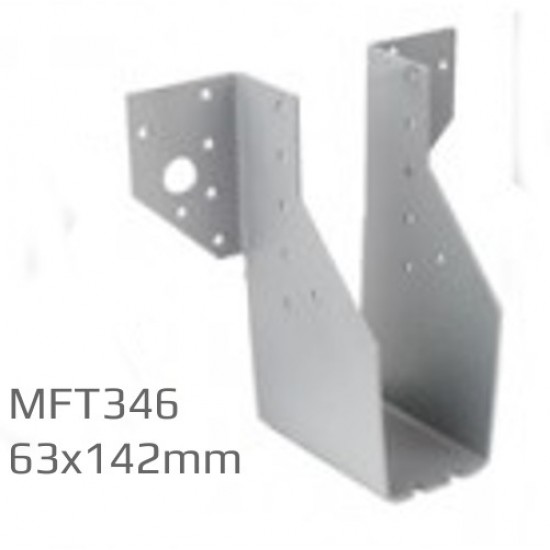

63x142mm Multifunctional Joist Hanger

63x142mm Multifunctional Joist Hanger
63x142mm Multifunctional Joist Hanger
Price: £2.25 (£2.70 inc VAT)
  • Product Code: A1-5248
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: MFT63/346BA - 63x142
  • Weight: 429.00g
Show other heights Show other sizes

63x142mm Multifunctional Joist Hanger

Width: 63mm
Height: 142mm
Thickness: 2mm
Weight: 429g
63mm x 142mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 x nail or screws. It can bolted, screwed, coach screwed or nailed. Long term safe working load = 5.3 kN.




FIXING INSTRUCTIONS for 63x142mm Multifunctional Joist Hanger

  • It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
  • The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.

SPECIFICATION

  • Location tabs aid fast accurate alignment of the hanger.
  • M12 bolt holes.
  • 85mm bearing.
  • Also available in Stainless Steel.
  • Tested by Ceram Research.
